solar ground mounting system

Flange Adjustable Galvanized Ground Screws Pile for Solar Mounting System

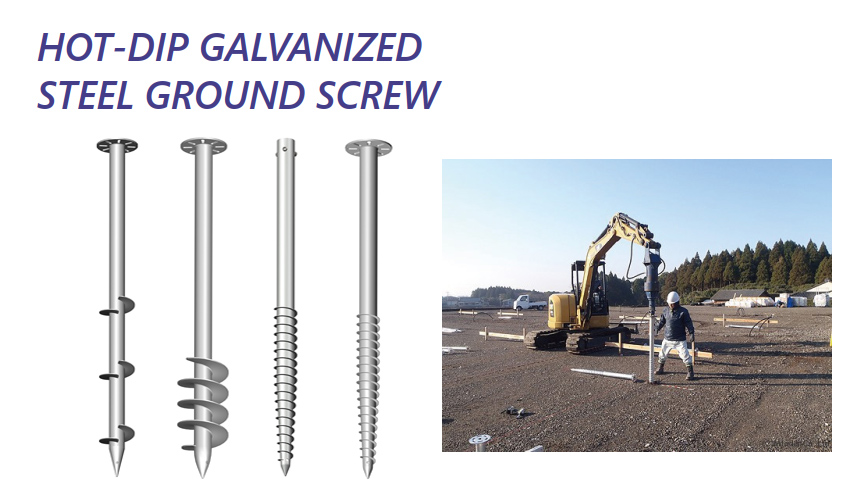

Ground screws have a wide variety of application, not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, footbridges and storage containers etc.
  • Brand:

    Kseng
  • Shipping Port:

    Xiamen
  • Material:

    Hot Dip Galvanizing Q235B
  • Warranty:

    10 Years
  • Service Life:

    25 Years
  • Certification:

    ISO9001/CE/UL/SGS
  • Product Detail

Flange Adjustable Galvanized Ground Screws Pile for Solar Mounting System

There are many advantages to the ground screw,you do not have to lug heavy loads, use heavy equipment, dig deep holes, pour messy concrete and wait for it to set.

Ground screws have a wide variety of application, not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, footbridges and storage containers, etc.

When it comes to sustainability, ground screws are ahead of the game. In comparison to concrete foundations, which first have to be separated and then disposed of at a landfill site after being dismantled, ground screws can simply be unscrewed and then completely recycled.

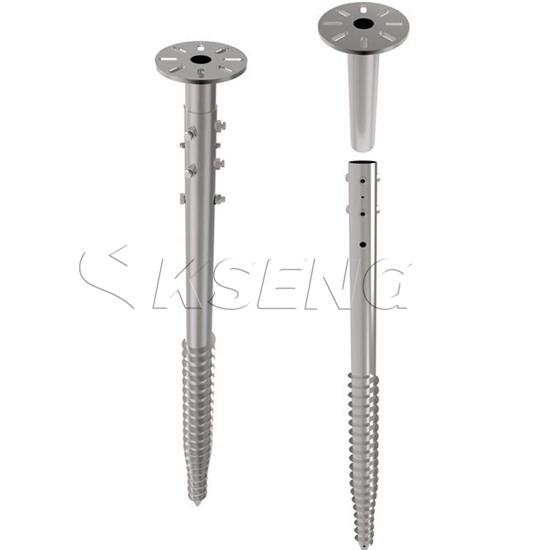

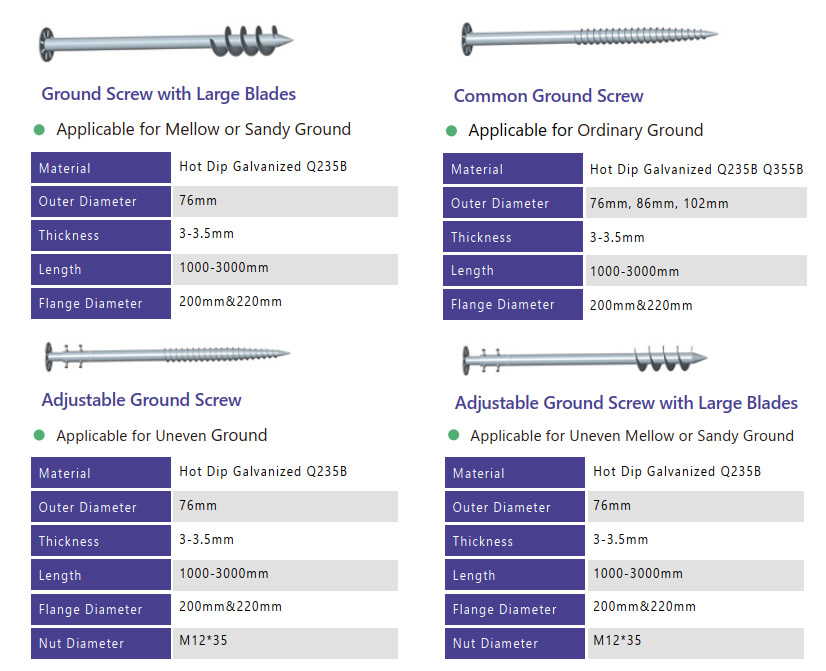

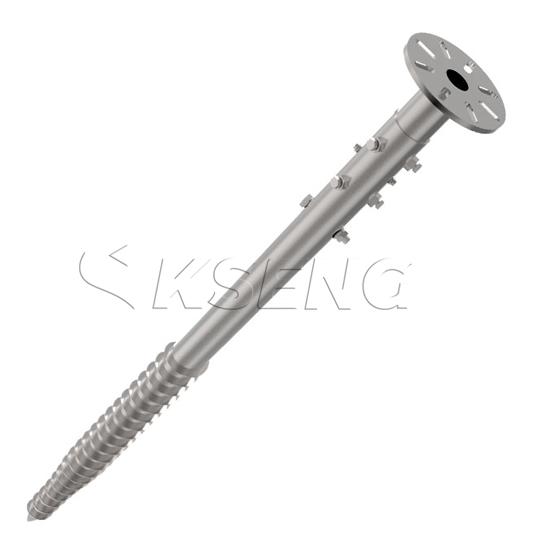

  Product Name:   Ajustable Flang Ground Screw
  Material:   Hot Dip Galvanizing Q235B
  Outer Diameter:   76mm
  Thickness:   3-3.5mm
  Length:   1000-3000mm
  Flange Diameter:   200mm&220mm
  Nut Diameter:   M12*35
  Warranty:   10 Years
 Service Life:   25 Years
 Application:  Wooden Houses/Solar Mounting Foundati on/Wooden Walkways
