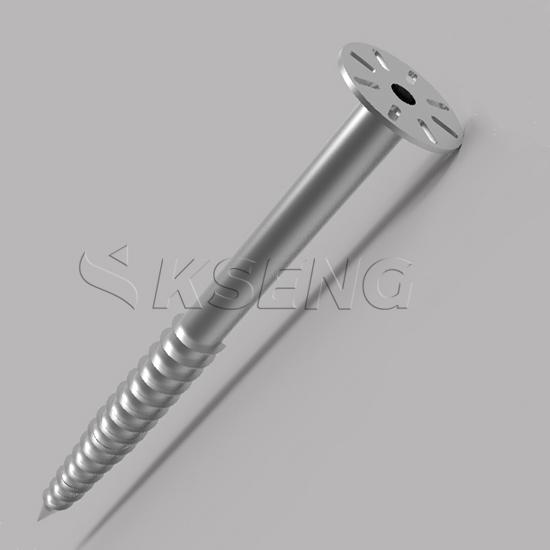

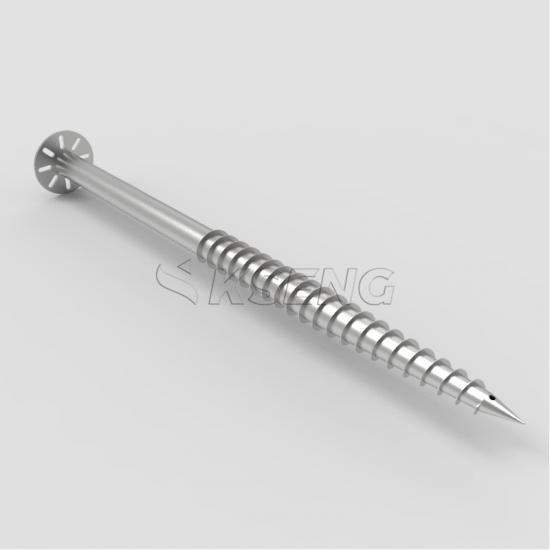

Solar Ground Screw Foundation For solar Mounting

The Hot Dip Galvanizing Ground screw merits:

1.Our ground screw fast to install, strong, lightweight, low cost, robust, low mess, and kind to the environment.

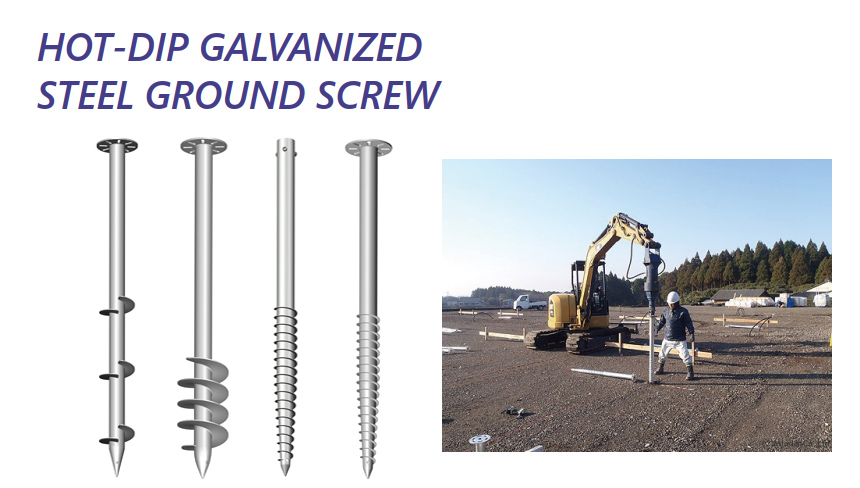

2.Ground screws installation is use the machines to drive the lightweight ground screw into the ground.

3.Compare with the concrete foundation, Our ground screw can reduce extensive excavation and soil moving work. And the crop can not the be damage.

4.We are professional manufacturer of ground screw, so we can customized different length and flange diameter to meet different customers` requirements.

Key Selling Points

1. Galvanized Steel Material for Enhanced Corrosion Protection

2. Foundation Solution for Large Scale Solar Projects

3. Strong Load Capacity for Solar Mounting Systems

4. Fast Installation for Reduced Construction Time

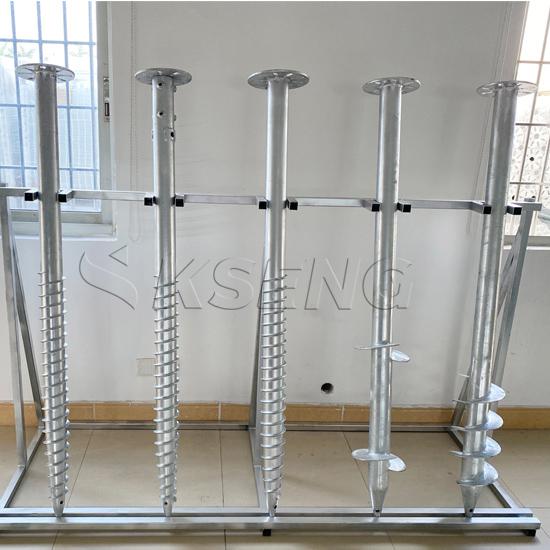

Introduction about Hot-Dip Galvanized Solar Ground Screw:

Introduction of hot-dip galvanized solar ground screw
Material: Usually made of Q235 carbon steel, the outer layer is hot-dip galvanized to enhance the anti-corrosion performance.

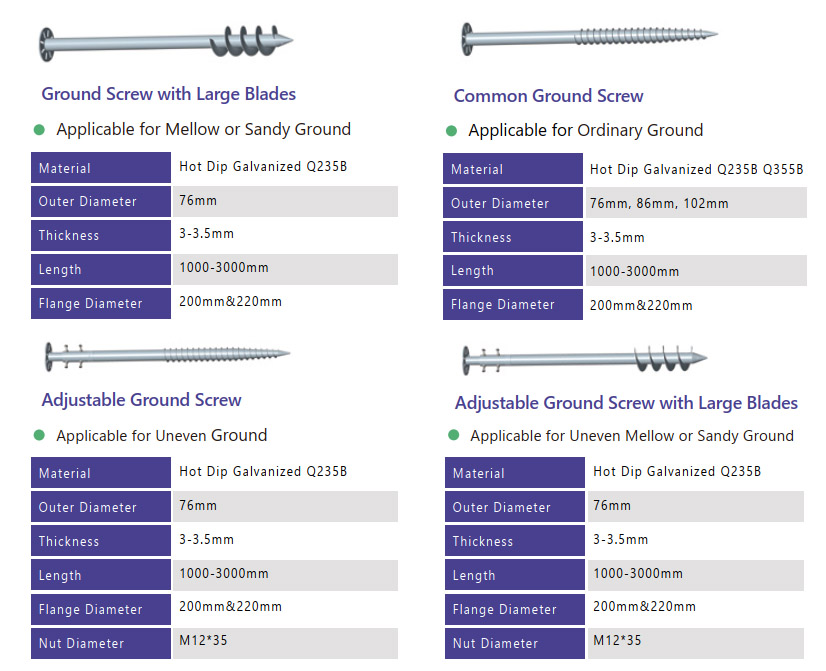

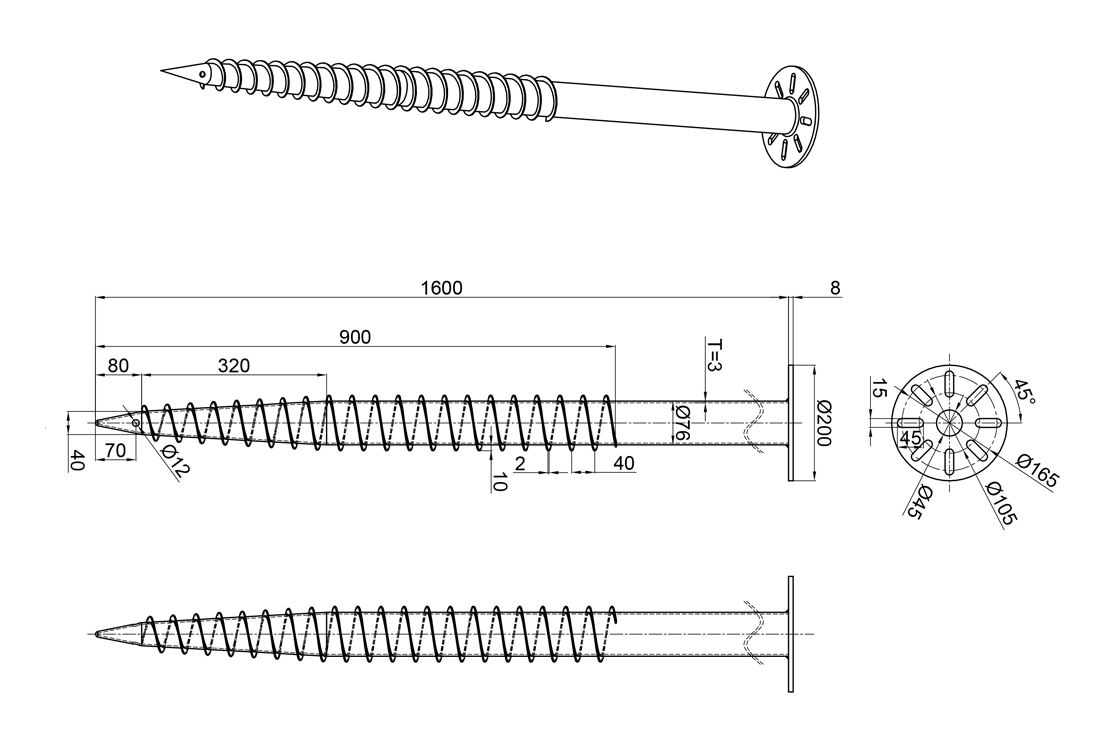

Specification: Length ranges from 100mm to 3000mm, outer diameter from 76mm to 102mm, thickness from 3.0mm to 3.5mm.

Characteristics: High load performance, solidity, anti-settlement and anti-drawing properties, suitable for various geological conditions, such as clay, Gobi Beach, gravel, etc.

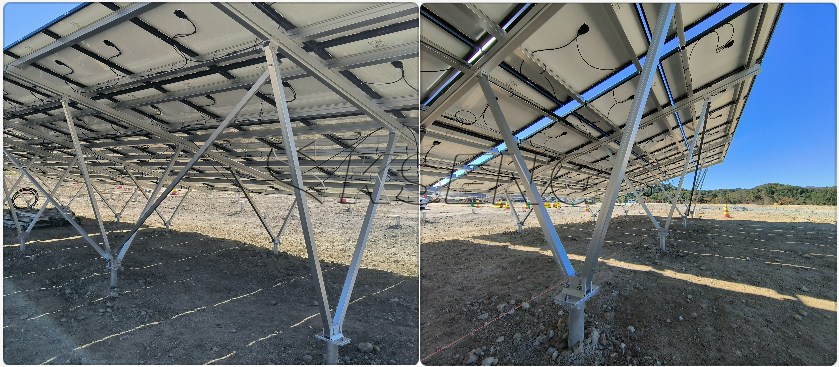

Application: Widely used in solar photovoltaic power station pile foundation, billboard pile foundation, sign flag pile foundation, wooden house pile foundation and so on.

Construction: It consists of high quality steel pipe in the middle part, connecting pipe at the top, connecting pipe at the top of the drill pipe, steel rod in the middle part and connecting shaft at the bottom. Ground piles are directly used as piles after being driven into the ground.

FAQ

1. Who is Kseng Solar?

2. What certifications does Kseng Solar have?

Kseng Solar has established a comprehensive quality management system supported by internationally recognized certifications, including:

ISO 9001 Quality Management System

ISO 14001 Environmental Management System

ISO 45001 Occupational Health & Safety Management System

TÜV product testing certifications

CE compliance

UL certification requirements

IEC standard compliance

CPP and ETN certifications for specific markets

3. How does Kseng Solar ensure product quality?

Quality is integrated into every stage of Kseng Solar’s production process. From raw material selection and manufacturing to inspection and final delivery, Kseng Solar follows strict quality management procedures to ensure every product meets high-performance standards.

4. Can Kseng Solar systems meet international installation standards?

Yes. Kseng Solar designs and manufactures solar mounting systems according to international standards and local market requirements, helping customers meet different regulations across Europe, Asia, North America, and other regions.

5. Does Kseng Solar cooperate with distributors and EPC companies?

6. Why choose Kseng Solar?

Choose Kseng Solar for certified quality, reliable performance, professional engineering, and a trusted partnership that helps maximize the value of every solar project.
