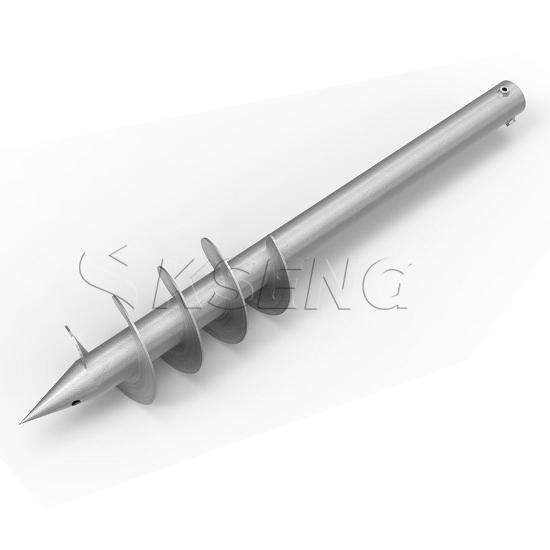

Flange Adjustable Hot Galvanized 4 Blades Solar Ground Screw Anchor

the ground screws are not damaged then they can be used again. As such, ground screws leave behind the same green space that was there before the construction and they leave the ecosystem of the soil intact.

In comparison to concrete foundations, when using ground screws you avoid any unnecessary surface sealing of the soil. The soil ecosystem is not disturbed and it remains intact.

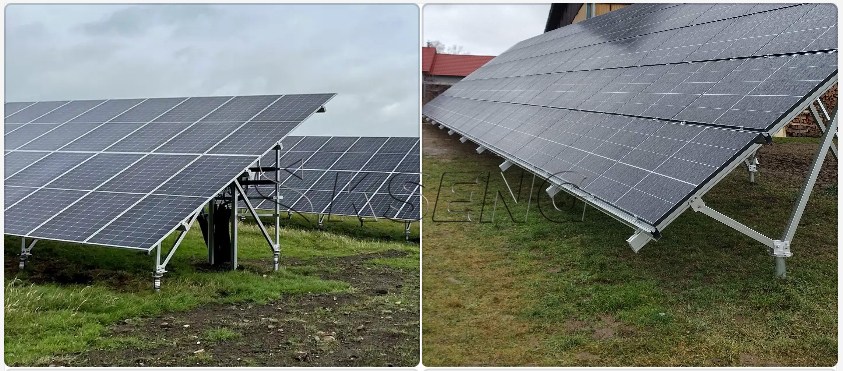

Ground Screw Anchor is the preferred foundation in many applications, such as solar power plants, fences, wooden houses, advertising and traffic systems, urban garden and landscape construction and so on.

Special situations call for special products Ground screws are always a good solution for special construction projects where conventional concrete foundations are no longer an economic selection.

Key Selling Points

1. High Strength Ground Screws for Stable Solar Foundations

2. Fast Installation for Efficient Solar Project Deployment

3. Durable Steel Construction for Long Term Outdoor Use

4. Precision Thread Design for Easy Ground Penetration

5. Secure Mounting Base for Renewable Energy Projects

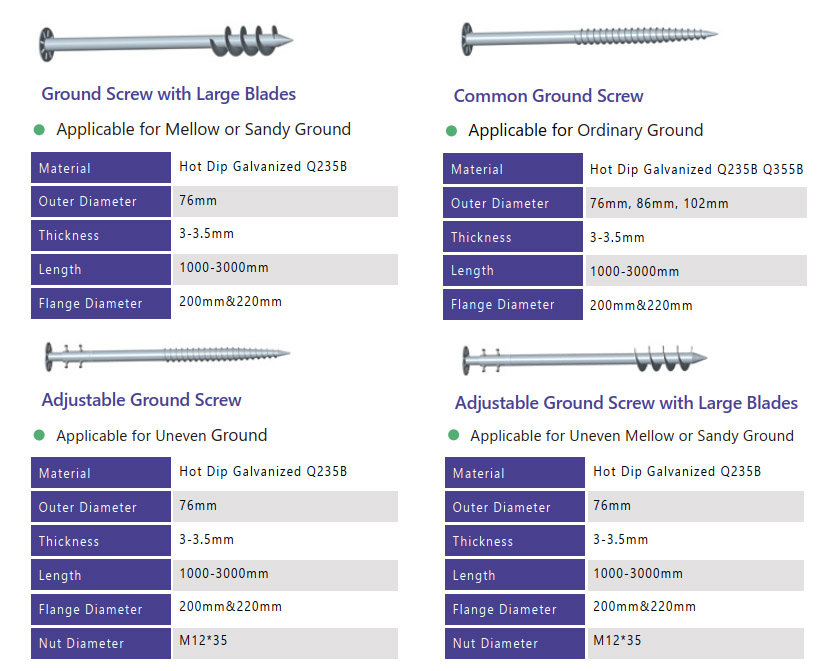

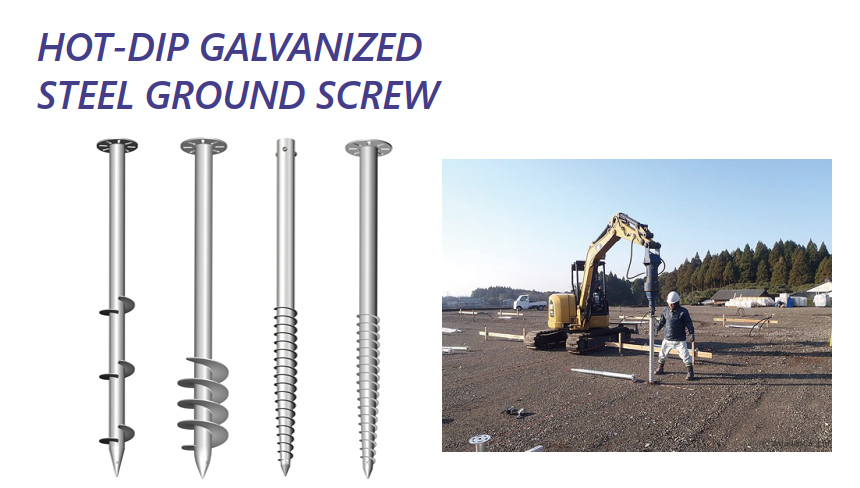

Hot-dip galvanized carbon steel solar ground screw introduction：

Material: Q235B high quality carbon steel is usually used, which has high strength performance.

Surface treatment: The surface of carbon steel is hot dip galvanized to effectively prevent corrosion and improve product durability.

Design: Some ground piles are specially designed, after mechanical testing and software simulation to ensure that the mechanical properties are guaranteed.

Installation: Convenient for on-site construction, some ground piles have pre-embedded bolts through cement piers to simplify the installation process.

Environmental protection: environmentally friendly, recyclable, no need for post-coating or coating, reducing maintenance costs.

Applicability: Suitable for a wide range of soil conditions, from clay to rock, and solar PV projects

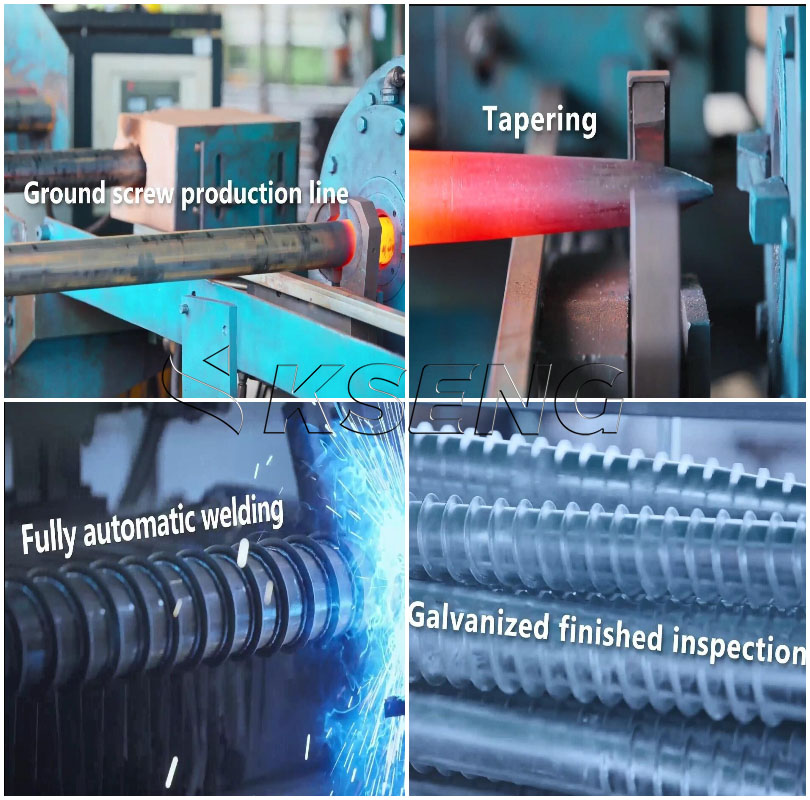

Solar Panel Ground Screw Production Process

FAQ

1. Who is Kseng Solar?

2. What certifications does Kseng Solar have?

Kseng Solar has established a comprehensive quality management system supported by internationally recognized certifications, including:

ISO 9001 Quality Management System

ISO 14001 Environmental Management System

ISO 45001 Occupational Health & Safety Management System

TÜV product testing certifications

CE compliance

UL certification requirements

IEC standard compliance

3. Does Kseng Solar provide customized engineering solutions?

4. Can Kseng Solar products withstand harsh environments?

Yes. Kseng Solar mounting systems are engineered for different environments, including high-wind areas, heavy-snow regions, coastal locations, and large-scale utility projects. Durable materials and certified testing ensure long-term system reliability.

5. Why is Kseng Solar trusted by global customers?

Kseng Solar is trusted worldwide because of its:

✓ International certifications and quality assurance

✓ Professional R&D and engineering capabilities

✓ Strong manufacturing capacity

✓ Reliable product performance

✓ Fast delivery and responsive service

✓ Experience in global PV projects

6. Why choose Kseng Solar?
