The solar roof mounting system is designed for asphalt single roof.
Brand:
KsengShipping Port:
XiamenMaterial:
Aluminum 6005-T5 & SUS 304 Stainless SteelWarranty:
10 YearsService Life:
25 YearsCertification:
ISO9001/CEStandard:
AS/NZS 1170Wind Load:
60M/SSnow Load:
1.4KN/M2Asphalt Roof Solar Mounting L Feet Kit With EPDM or Flashing

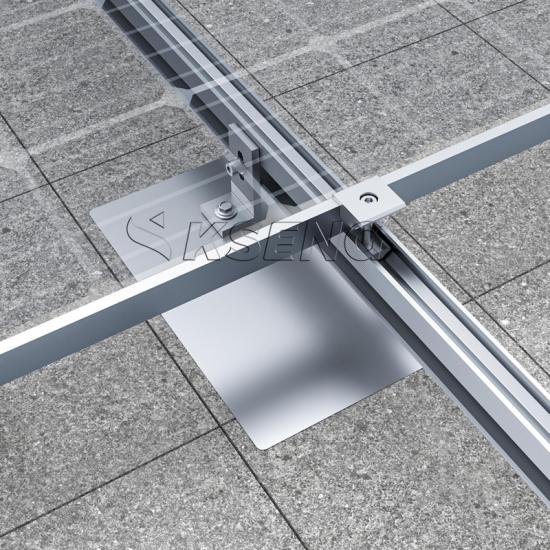

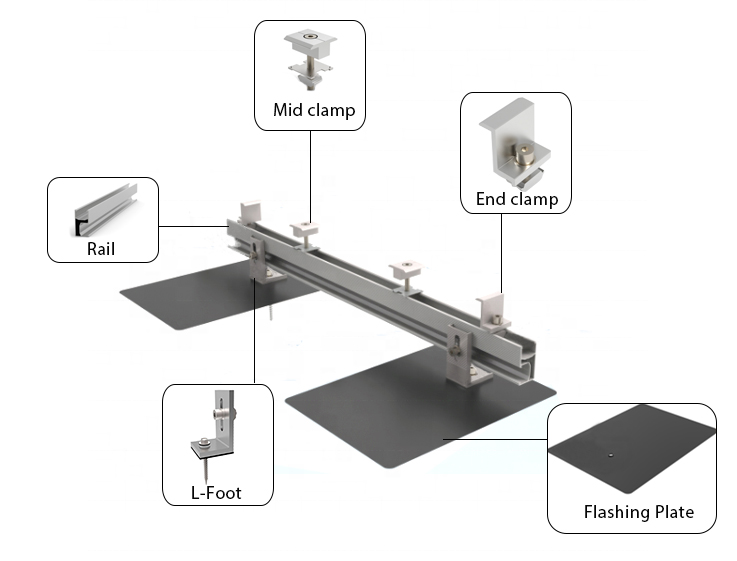

1.Asphalt tile roof solar mounting system flashing with L feet series:
The solar roof mounting system is designed for asphalt single roof, the flashing plate with raised tapered hole, together with rubber pad can perfectly cooperate with L feet, which has good waterproof function.
The solar roof mounting flashing with L feet series is equipped with wooden screw connection options to achieve maximum versatility and can be used with all common aluminum alloy rails.

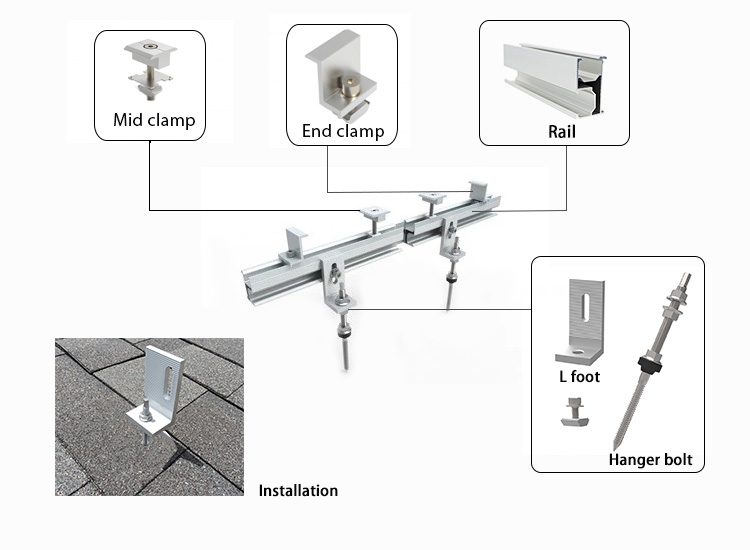

2.Asphalt tile roof solar mounting system L feet with hanger bolt series:
The series adopt L feet/ hanger bolt/EPDM/R006 solar rail/ mid clamp/ end clamp, which can realize ultra-fast single-step bolt installation, and has efficient and economical waterproof performance.
.High-grade anodized aluminum.
.It can be used flexibly with the L foot to withstand different wind and snow loads.
.Provide surface treatment, silver anodized or black anodized.
.Suitable for most rails.
Material: | Aluminum 6005-T5& SUS 304 Stainless Steel |
Application: | Asphalt Shingle Roof |
Standard: | AS/NZS 1170 |
Certification: | ISO9001/UL/CE/SGS |
Pv Modules: |
Framed or Frameless |
Anti-Corrosive: |
Anodized |
Warranty: |
10 Years |
Service Life: | 25 Years |
Components: | L Feet, Aluminum Nut, Bolt M8*25, Wooden screw ST6.3*80mm, R006 Solar Rail, Rail Splice, Mid Clamp, End Clamp,EPDM etc. |
