Pitched Tile Roof Solar Roof Mounting System

The Solar Tile Roof Racking System is a solar PV racking solution designed specifically for tile roofs that allows solar panels to be safely and efficiently mounted on tile roofs without damaging the waterproof structure of the roof.

  • Brand:

  • Product Origin:

  • Shipping Port:

  • Material:

    Aluminum Alloy & SUS304 Stainless Steel
  • Warranty:

    10 Years
  • Service Life:

    25 Years
  • Certification:

  • Application:

    Pitched Tile Roof
  • Standard:

    AS/NZS 1170
  • Wind Load:

  • Snow Load:


Benefits of tile roof solar mounting systems:

1.In view of many years of experience, the many selection of different accessories and systems enables secure with Kseng systems to almost any PV module configuration on each roof.

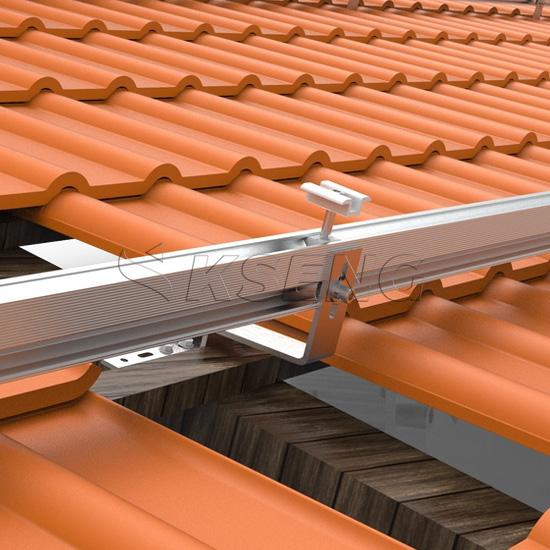

2.We use side-mounted solar hooks for pitched curved tile roof solar panel mounting systems , it’s a good and effective solution for both home and commercial projects.

3.Our solar tile roof mounted system components are lightweight, easy installation. the components Which material is aluminum alloy that have anodized surface treatment, there are durable and recyclable.

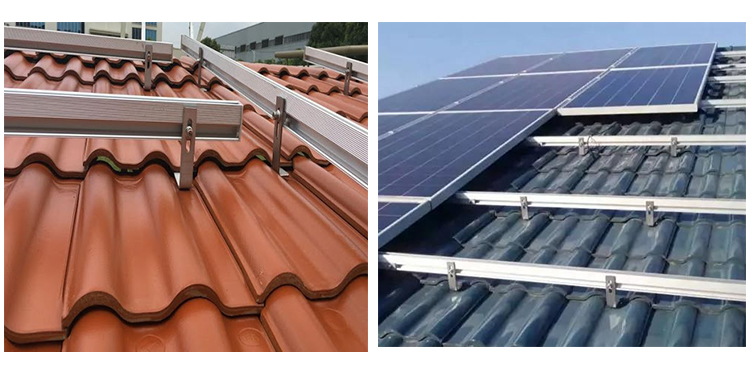

solar pitched tile roof mounting

 Material:  SUS 304 Stainless Steel, Aluminum Alloy
 Application:  Pitched Tile Roof/ Curved Tile Roof / Sloping Tile Roof
 Standard:  AS/NZS 1170
 Certification:  ISO9001/CE/SGS/UL
 Wind Load:  60m/s
 Snow Load:  1.4kn/m2
 Warranty:  10 Years
 Service Life:  25 Years
 Components:  Pantile Hook, Rail, Rail Splice, Middle Clamp, End Clamp, Nut etc.
 Other:  Support Customized
 Applicable Module:  Framed or Frameless

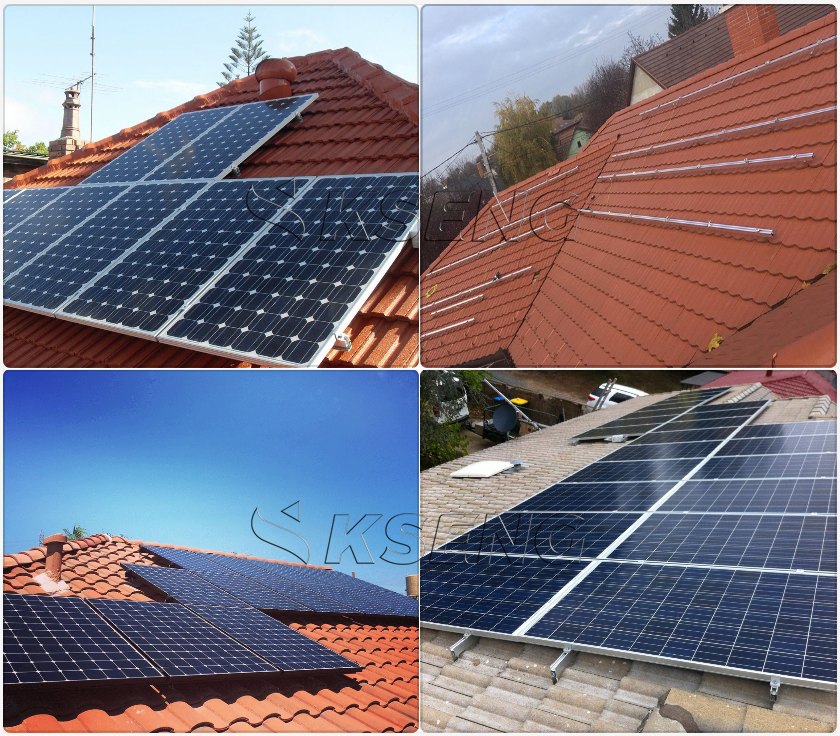

solar roof mount


Q: What is the installation process for the Solar Tile Roof Mounting System?
A: The installation process includes determining the location of the roof hooks, installing the rails, and attaching the clamps. Care should be taken not to damage the shingles and to ensure that the bracket is securely fastened.

Q: Do I need any special tools or skills to install a solar shingle roof racking system?
A: Some basic construction tools such as screwdrivers and drills are usually required. Installation may require some knowledge of building or roofing construction, but many systems are designed to be easy to install and specific requirements can be found in the manufacturer's installation guide.

Q: How does the system ensure stability and durability in harsh weather conditions?
A: Highly durable design, use of high quality materials and anti-corrosion treatments, as well as testing and design according to international standards such as AS/NZS 1170, ensure that they can withstand extreme weather conditions.

Q: What are the maintenance requirements for the Tile Roof Racking System?
A: Maintenance requirements are relatively low, and consist of regular checking of the tightness of the racking and connections, as well as cleaning of the solar panels to ensure that there are no obstructions that could affect the efficiency of the power generation.

Q: What are the safety precautions for installing a solar shingle roof racking system?
A: When installing, avoid working in bad weather and do not step on the solar modules with glass surfaces to prevent breakage and injury. Use the specified tools and parts and make sure the installation is secure to prevent the module or racking from falling down
