solar ground mounting system

Aluminum Triangle Adjustable Angle Solar Panel Roof Mounting System

Aluminum triangle adjustable angle solar panel roof mounting system can be implemented on open ground attached to concrete foundations,or on a metal roof with a low angle of slope for that extra strength.
  • Brand:

    Kseng
  • Shipping Port:

    Xiamen
  • Material:

    Aluminum 6005-T5 & SUS 304 Stainless Steel
  • Warranty:

    10 Years
  • Service Life:

    25 Years
  • Certification:

    ISO9001/CE
  • Standard:

    AS/NZS 1170
  • Wind Load:

    60M/S
  • Snow Load:

    1.4KN/M2
  • Product Detail

Aluminum Triangle Adjustable Angle Solar Panel Roof Mounting System

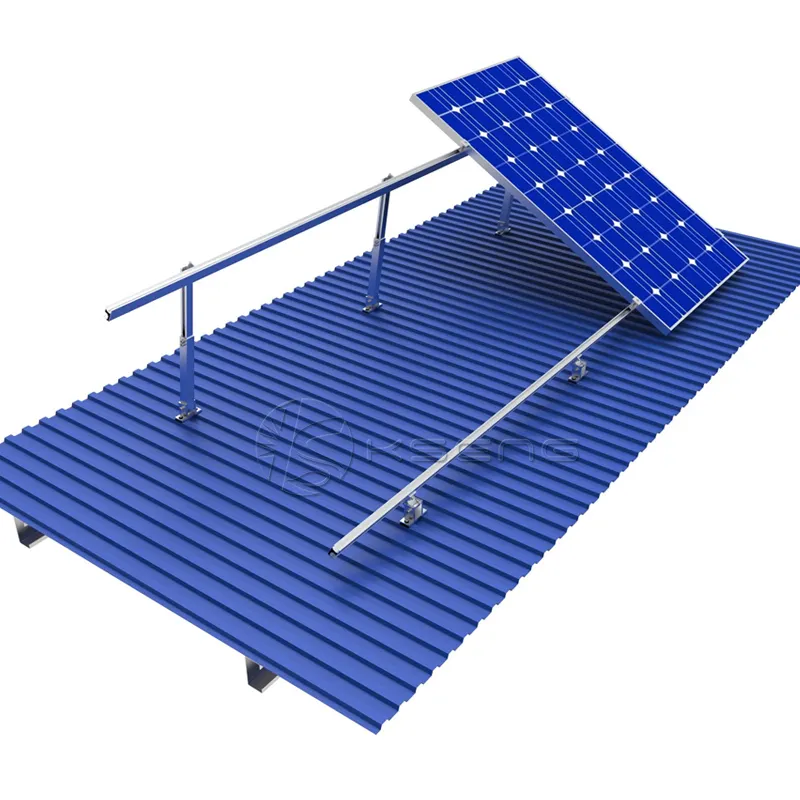

roof mounting.png

Kseng triangle adjustable angle roof mounting structure:

1、Aluminum triangle adjustable angle solar panel roof mounting system can be implemented on open ground attached to concrete foundations,or on a metal roof with a low angle of slope for that extra strength.

2、In order to solar panels can be installed at the optimal angle for energy output, so fixed or adjustable triangle supporting solar panel frames.

3、All structure components are comprised of high quality stainless steel and anodized aluminium alloy.

4、The aluminum adjustable ballast roof mounting systems are designed for a 25 year service life and are backed by 10year warranty.

5、Our triangle tilt mounting system works well on both metal roof sheet or concrete base. It is quite flexible, light, convenient and strong.

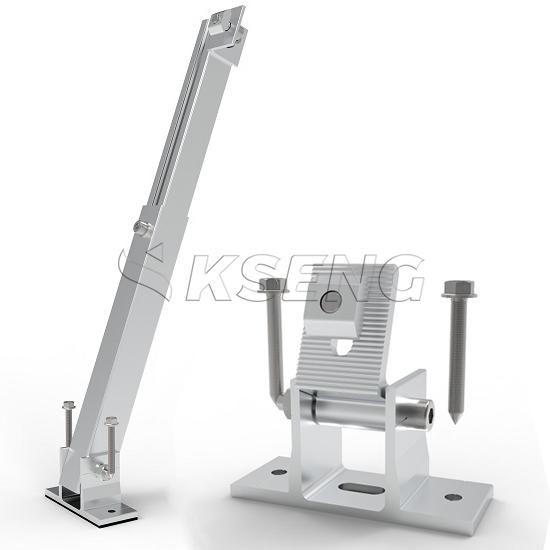

6、And we can also customize adjustable rear leg for easy installation in different places.

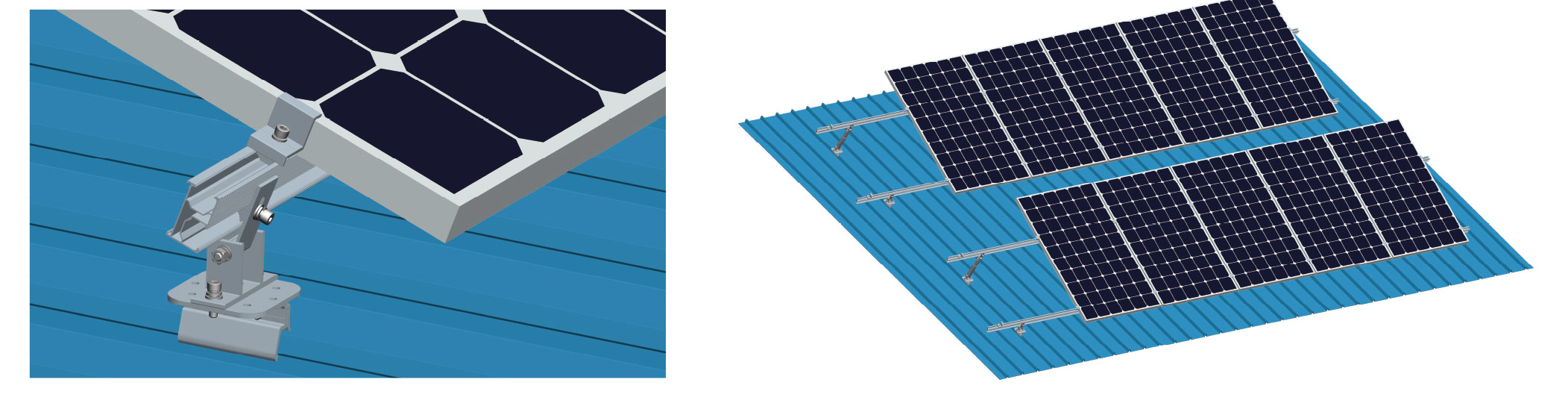

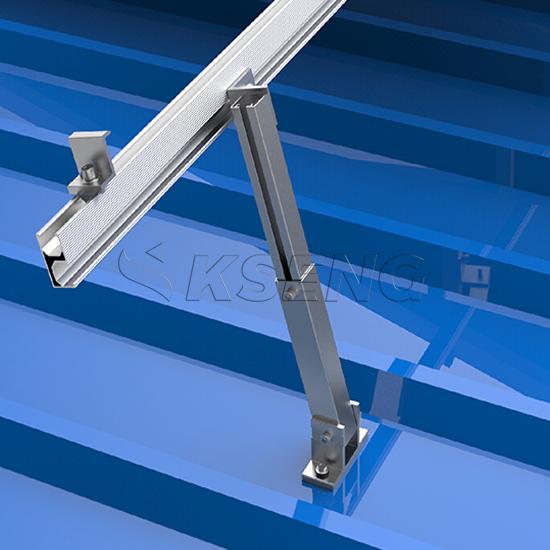

roof mounting details.png

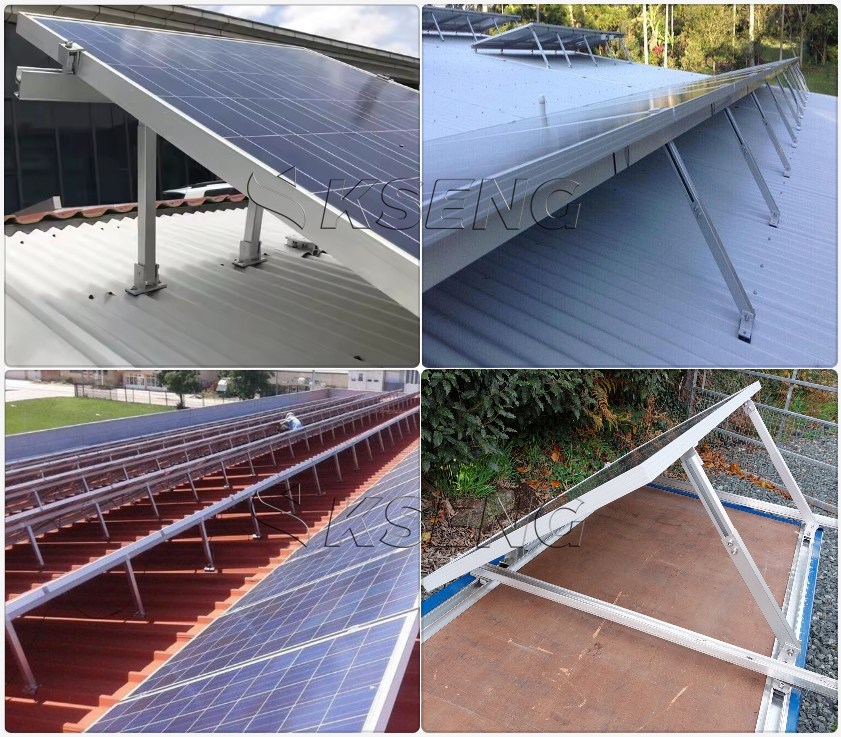

adjustable roof.jpg




  Material:   Aluminum 6005-T5 & SUS 304 Stainless Steel
  Application:  Flat Roof or Low Pitched Roof
  Tilt Angle:  10~15°,15°~30° and 30°~60°
  Standard:  AS/NZS 1170
  Certification:  ISO9001/CE/UL
  Wind Load:  60M/S
  Snow Load:  1.4KN/M2
  Warranty:  10 Years
  Service Life:  25 Years
