solar ground mounting system

Solar Hanger Bolt for Solar Panels Mounting

solar Hanger Bolts is very commonly used for solar roof mounting system especially metal roofs.
  • Product Orgin:

    XIAMEN
  • Brand:

    Kseng
  • Shipping Port:

    XIAMEN
  • Material:

    stainless steel
  • Warranty:

    10 years
  • Service Life:

    25 years
  • Product Detail

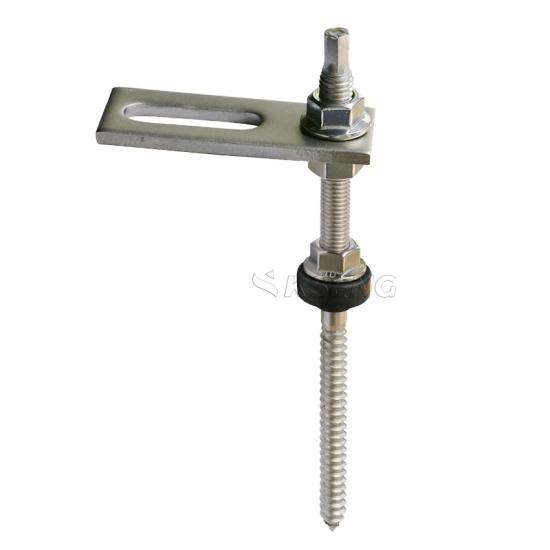

Stainless steel solar panel tile roof hook hanger bolt mounting hook

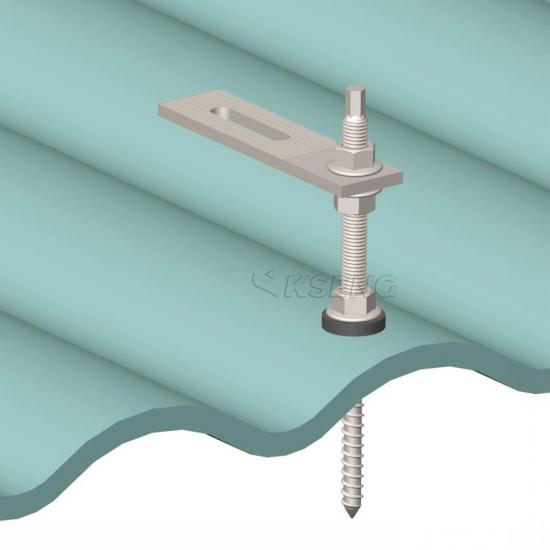

Solar panels Hanger bolt is applied to install on both wooden rafter and steel purlin for trapezoidal / zinc / corrugated / sandwich metal roof profiles . Both types can be applied with L feet and plate.  It can fix the rails and roofing mountings.

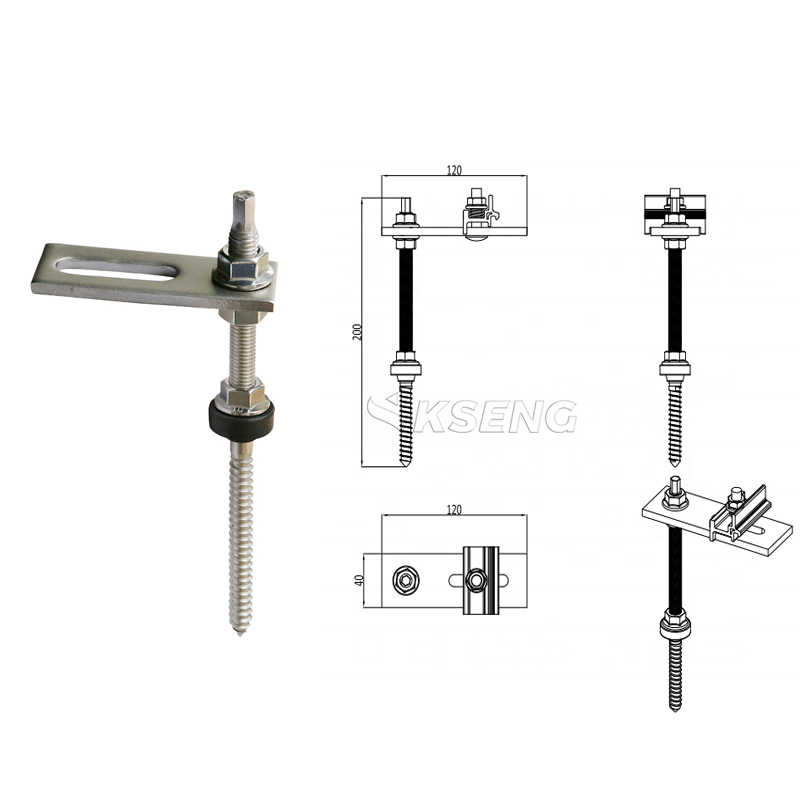

Two length 200mm and 250mm options can be suitable for adjust distance between brackets / L foot rails and metal roofing .

Kseng whole hanger bolt kits includes : stainless steel bolt , nuts, EPDM rubber and fasten L foot / small stainless plate.

L feet01.jpg

Product Name

Solar panels hanger bolts

Model Number

Null

Material

Aluminum 6005-T5 & SUS 304 Stainless Steel

Max Wind Speed

Up to 60 m/s (214KM/H)

Snow Load

Up to 1.4KN/M2

Application

Corrugated Metal Sheet Roof

Warranty

10 Years

Service Life

25 Years

Certification

ISO9001/ CE/ SGS etc.

Standard

AS/NZS 1170
