SUS 304 stainless steel hanger bolt solar mounting bracket hardware accessory.
Brand:
KsengProduct Origin:
ChinaShipping Port:
XiamenMaterial:
SUS 304 Stainless SteelWarranty:
10 YearsService Life:
25 YearsWind Load:
60m/sSnow Load:
1.4kn/m2Stainless Steel Hanger Bolts for PV Solar Roof Mounting System

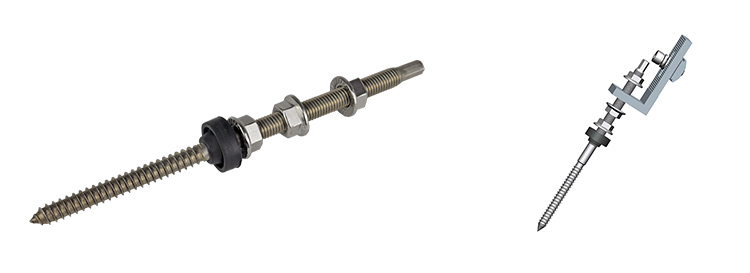

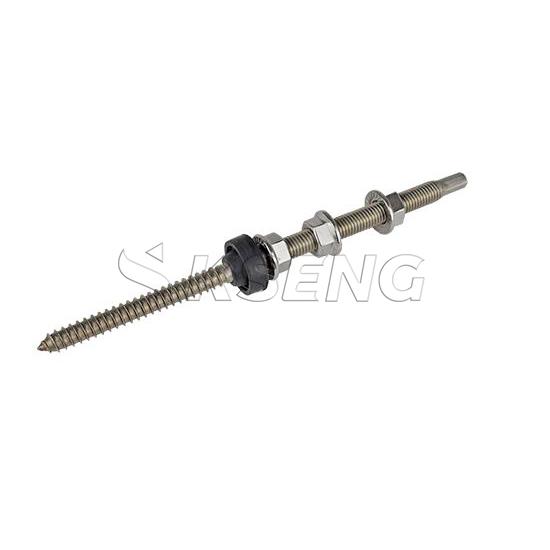

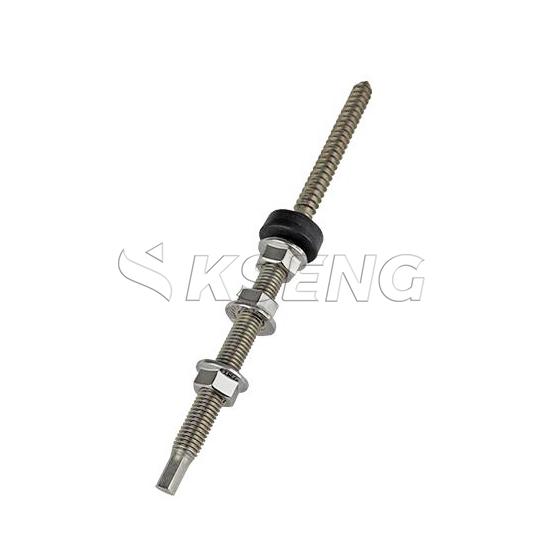

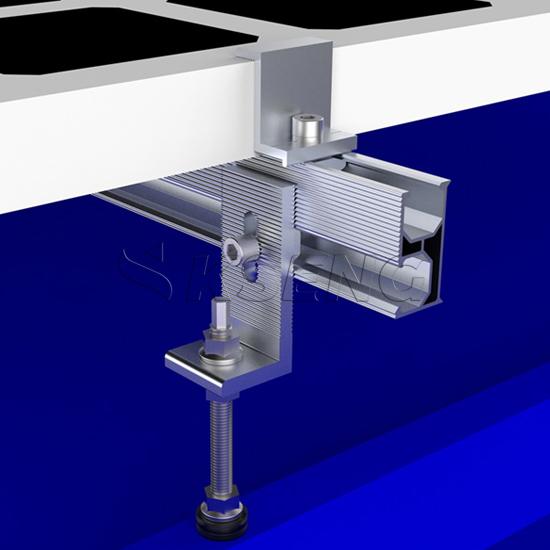

The solar hanger bolts are SUS 304 fasten parts for roof mounting system to fixed solar L feet .The solar roof fasten bolts can be well used with L-feet for solar mounting and racking systems that are designed for trapezoidal / zinc / corrugated / sandwich metal roof profiles .Kseng`s whole hanger bolt kits includes : stainless steel bolt , nuts, EPDM rubber and fasten L foot / small stainless plate …,the EPDM plasic grommet are good performance in bad weather as roof seal, 10 years warranty offer .
Features of our PV module hanger bolts:
– 7 3/4″ and 9 3/4″ length for choosing ;
– Good load bearing capacity ;
– Quick mounted installation hardware, fast fit system ;
– Precise adjust deepth and height for metal roofs ;
– Well span gap controlled by the longer hanger bolt for roof structure ;

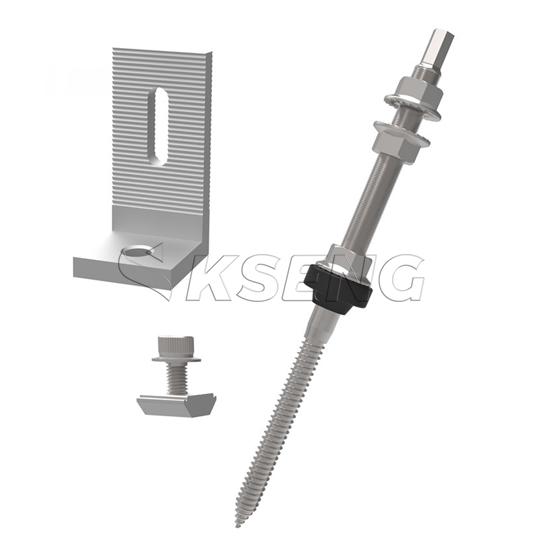

– Includes bolt, rubber pad, flange nuts, support plate ;
– Application: metal roofing , trapezoidal roofs, corrugated metal sheet roofing, sandwich fiber roof, tin roofs …
| Product name: | Hanger Bolt |
| Material: | SUS 304, EPDM |
|
Application: |
Solar Panels Roofing Installation |
| Color: | Nature |
| Certification: | ISO9001/CE/SGS |
| Max Wind Load: | 60m/s |
| Snow Load: | 1.4kn/m2 |
| Warranty: | 10 Years |
| Service Life: | 25 Years |
