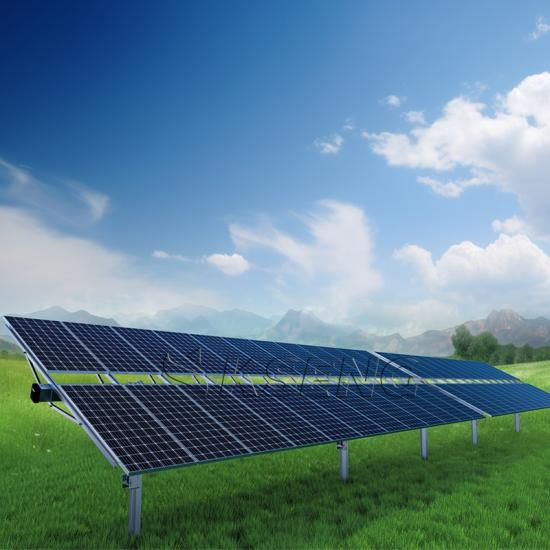

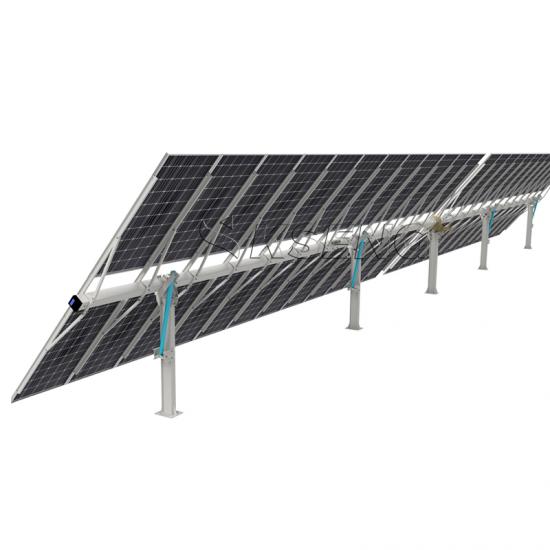

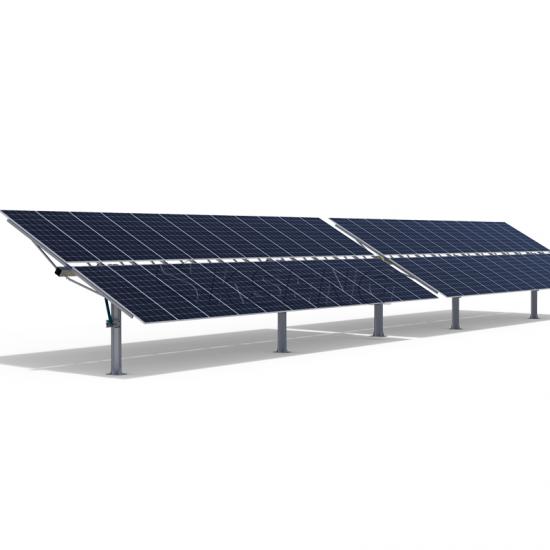

KST-2P Double Portrait Horizontal Single axis Solar Tracking System

Kseng Dual Portrait Horizontal Single Axis Solar Tracking System is an advanced solar photovoltaic mounting technology that combines a dual-row solar panel layout with a horizontal single-axis tracking mechanism to optimize solar energy collection efficiency.


  • Brand:

    Kseng
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Material:

    carbon steel
  • Drive System:

    Slewing Drive
  • Tracking Range:

    ±45°to ±60°
  • Tracking Accuracy:

    ±1°

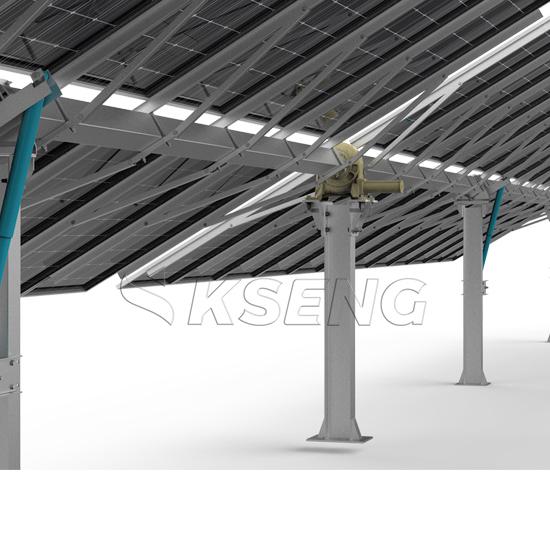

Kseng KST-2P solar tracker adopt single slew drive with dampers on both sides to increase overall stability.

It's a good match with bifacial solar modules for maximum power generation. Featured with fewer column,

it's quiet flexible for uneven terrains.


solar powered gps tracking device




  Structure Parameters
  System type
  Double Portrait Horizontal  single-axis tracking system
  Maximum capacity per row
  54KWp (Estimated with 600W PV -Modules)
  PV-Modules quantity per row
  2Px45, 2Px30
  Tracking range
  ±60°
  Tracking accuracy
  ±1°

  Materials

  HDG Steel, Al-Mg-Zn Coating Steel
  Foundation
  Concrete foundation, Steel pile, PHC pile
  Quantity of foundation/MW

  130PCS/MW (Estimated with 600W PV-Modules)

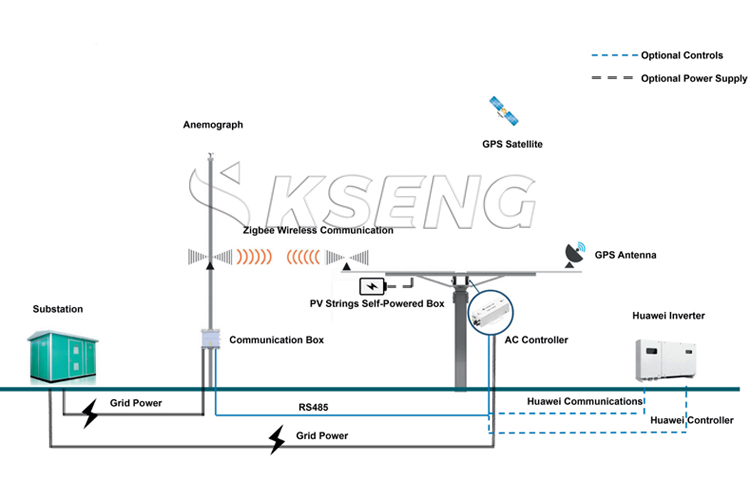

  Controller Parameters
  Controller system
  MCU
  Tracking method
  Astronomical algorithm+closed-loop control (AI)
  Signal transmission
  Wire (RS485) or wireless (Zig bee)
  Drive method
  Slew drive
  Motor type
  DC 24V
  Power supply
  AC-powered or self-powered
  Foundation
  Concrete foundation, Steel pile, PHC pile

Advanced AI tracking algorithm

AI self-learning algorithm to optimize the angular deviation caused by terrain and bracket installation errors.

Compared with the traditional tracking algorithm, the power generation of the power station can be increased by 2%-3%.

solar tracking technology


KST-2P features

1:Suitable for the mid-low wind load areas

2:Fully fit for 210 module

3:Al algorithm to maximize power generation

4:Adapt to various terrains allowing a north-south slope up to 20%

5:Easy installation & maintenance

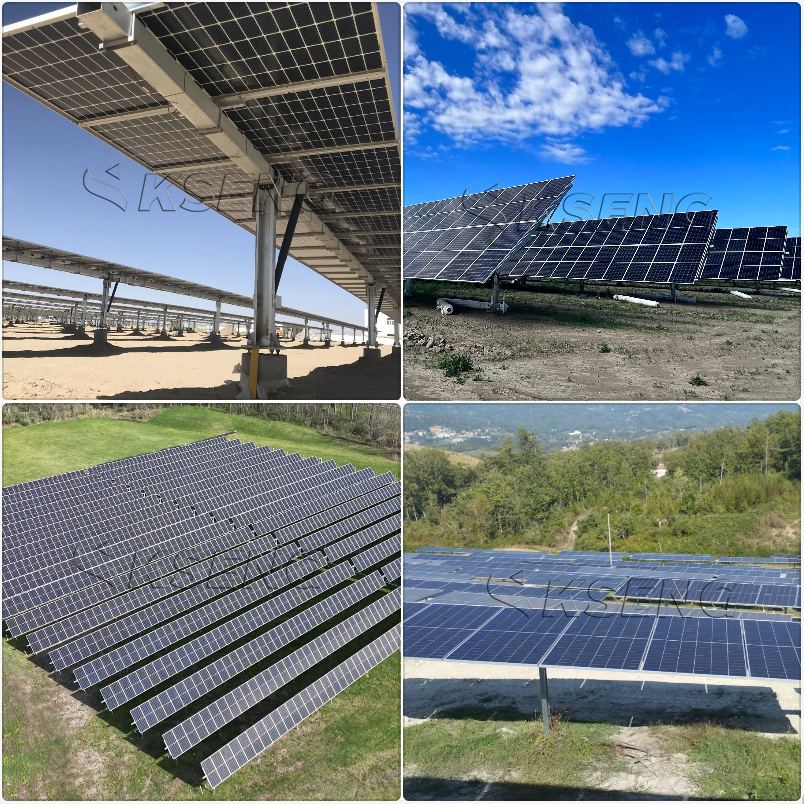

Terrain adaptability:

1. Flexible arrangement, make full use of irregular land and can improve land utilization.

2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.

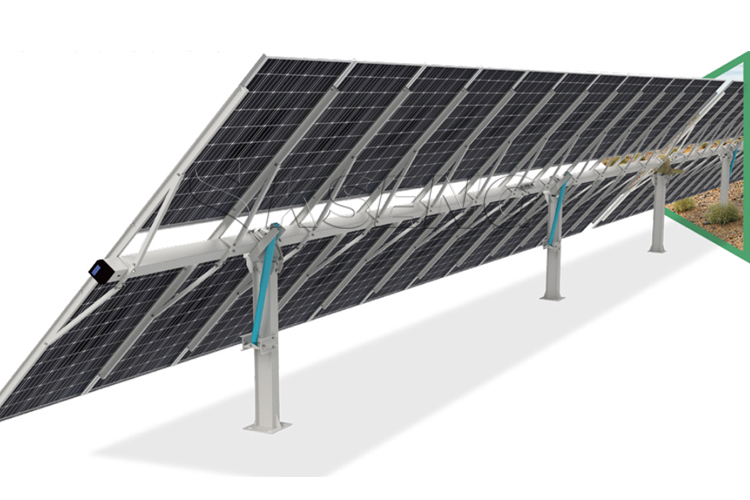

solar panel tracking system



Double Portrait Horizontal Single Axis Solar Tracking System Selling Points:
1.Increased power generation: The combination of the dual-row layout and the horizontal single-axis tracking mechanism can significantly increase the power generation efficiency of the solar panels, much more than traditional fixed racking systems.
2.High space utilization: The dual-row layout allows more solar panels to be installed on the same area of land, improving space utilization.
3.Automated operation: The automated control system reduces manual intervention, lowers maintenance costs, and improves system reliability.
4.Adaptable: Suitable for a variety of terrains and environments, including flat areas, mountains, and deserts.
5.Easy maintenance: due to the simple design of the system, maintenance work is relatively simple, reducing maintenance time and cost.
6.Environmentally friendly: Increased utilization of solar energy and reduced dependence on fossil fuels help reduce carbon emissions and environmental pollution.
7.Expandability: The system can be flexibly expanded according to project needs, adapting to solar power projects of different sizes.


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products
solar panel mini rail

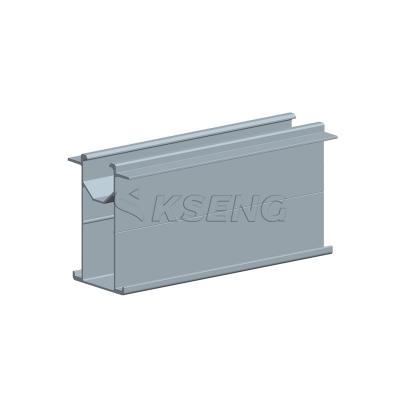

Economic Solution Solar Panel Mounting Trapezoidal Profile Metal Roof Mounting Solar Mini Rail
