Growatt Spf 6000 Es Plus 48V 6000W Off Grid Hybrid Single Phase Solar Inverter

Growatt Spf 6000 Es Plus Solar Inverter
Growatt Spf 6000 Es Plus Solar Inverter
Growatt Spf 6000 Es Plus Solar Inverter
Growatt Spf 6000 Es Plus Solar Inverter
Growatt Spf 6000 Es Plus Solar Inverter

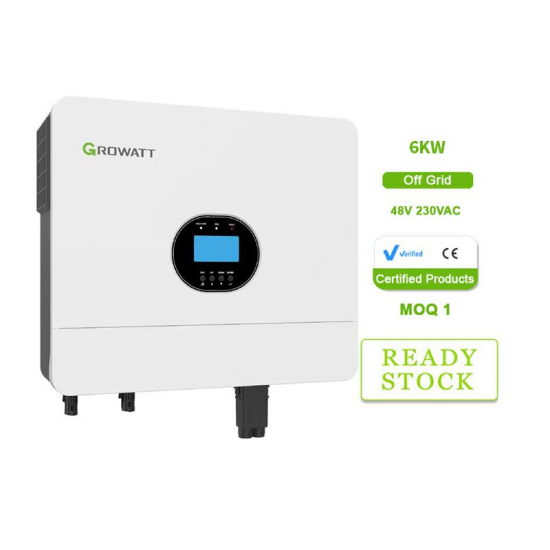

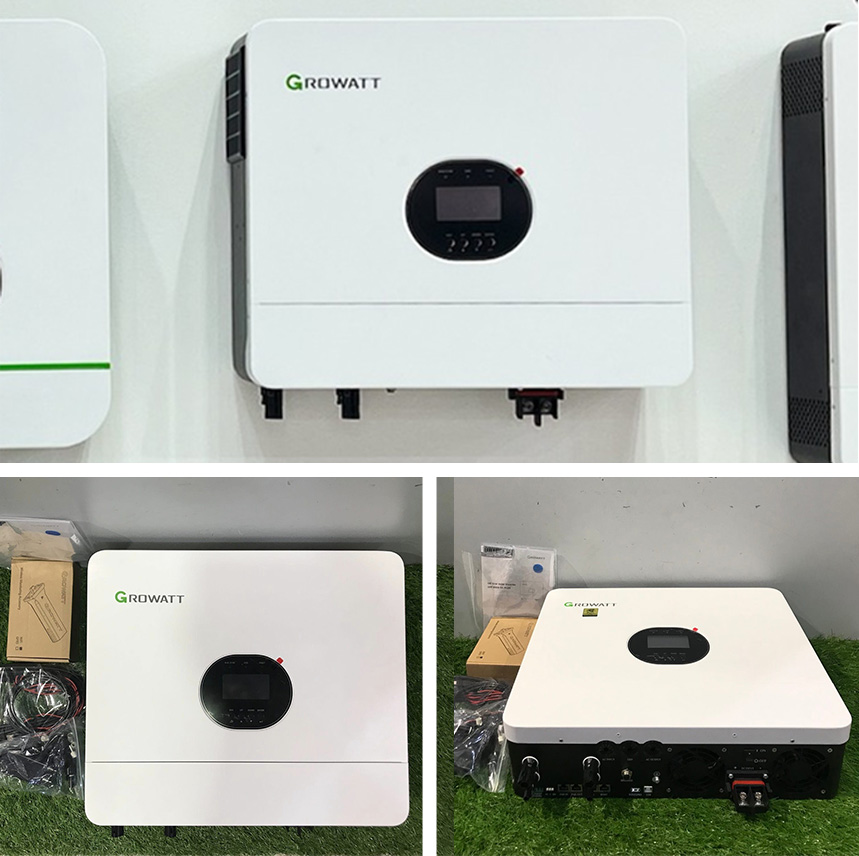

Growatt Spf 6000 Es Plus 48V 6000W Off Grid Hybrid Single Phase Solar Inverter

The Growatt SPF 6000 ES Plus solar inverter is a high-efficiency, hybrid off-grid inverter designed for residential solar power systems

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Certification:

    CE

  • Application:

    Off-Grid Solar System
Inquiry now

After-sales service

*Growatt inverters have obtained more than 20 certifications around the world, and the products have been sold to more than 100 countries and regions in Australia, Europe, America, Asia, Africa, and Latin America on a large scale.
*After-sales stations are located in more than 20 countries around the world.


Products Description


Datasheet SPF 6000 ES Plus
Battery Voltage 48VDC
Battey Type
 Lithium/Lead-acid
Inverter Output
Rated Power 6000VA/6000W

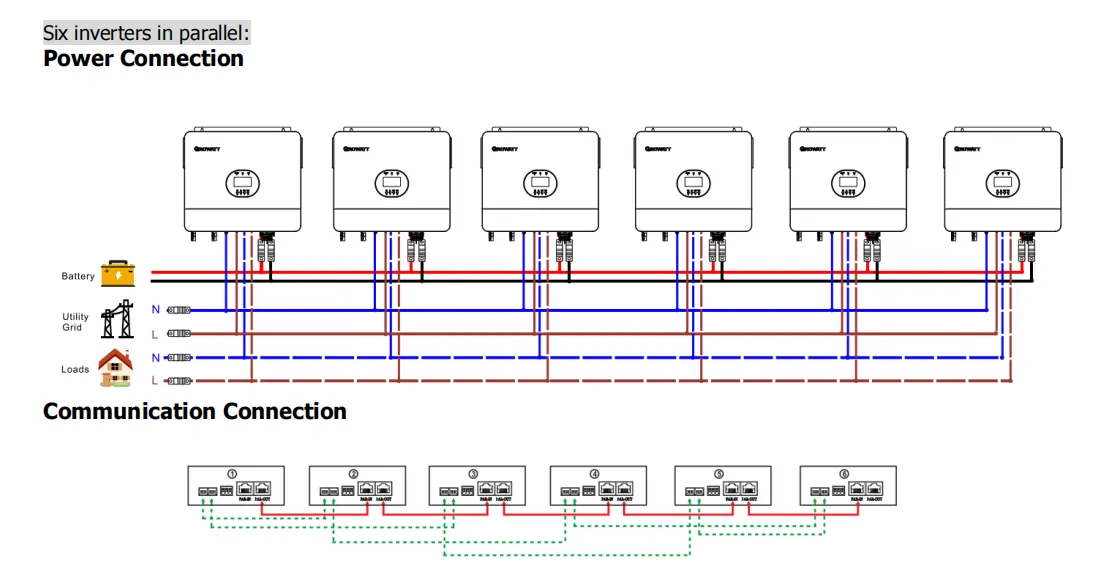

Parallel Capability Yes, 6 units maximum
AC Voltage Regulation
(Battery Mode) 		230VAC±5% @ 50/60Hz
Surge Power 12000VA
Eficiency (Peak) 93%
Waveform Pure sine wave
Transfer Time 10ms typical, 20ms Max
Solar Charger
Maximum PV Array Power 8000W
MPPT Range @ Opraing Voltage 120VDC ~ 450VDC
Number of Independent MPP Trackers/
Strings Per MPP Tracker 		2/1
Max. input curent per MPP tracker 16A
Maximum PV Array Open
Circuit Voltage 		500VDC
Maximum Solar Charge Current 100A
AC Charger
Charge Current 80A
AC Input Voltage 230VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers); 90-280 VAC (For Home
Appliances)
Frequency Range 50Hz/60Hz (Auto sensing)
Physical
Protection Degree IP20
Dimension (W/H/D) 460/395/132mm
Net Weight (kgs) 13.5
Operating Environment
Humidity 5% to 95% Relative Humidty(Non-condensing)
Altitude <2000m
Operating Temperature
 O°C - 55°C
Storage Temperature -15°C - 60*C

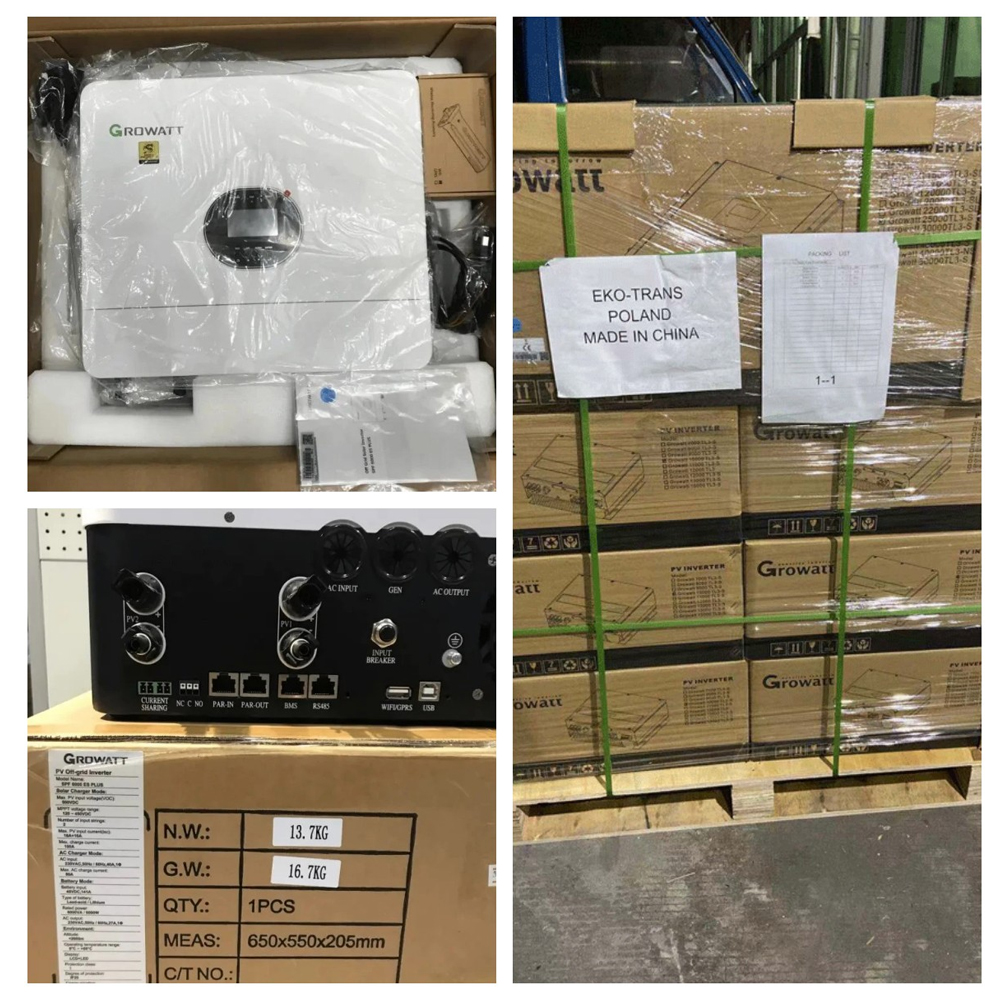

Product Packaging

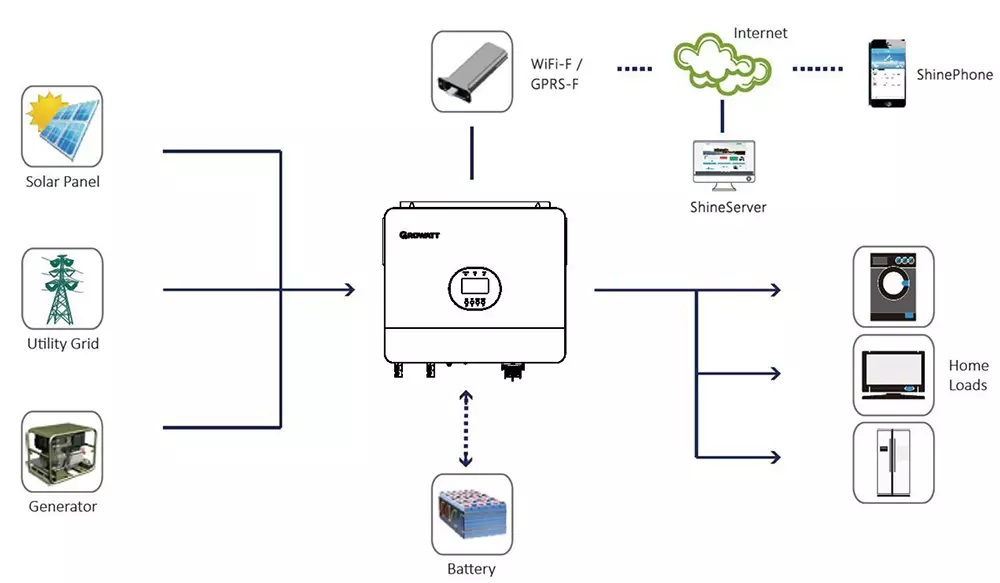

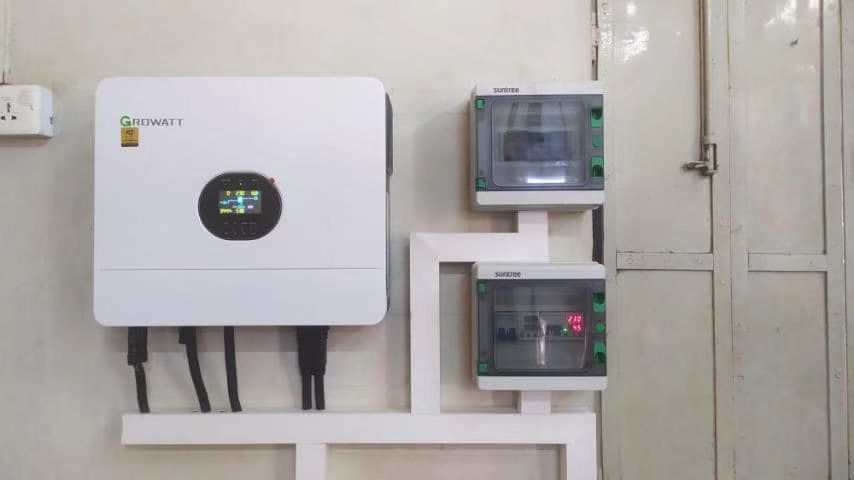

Product Application
