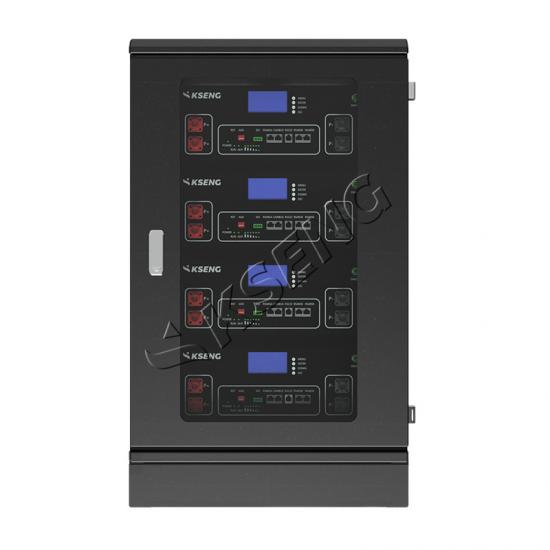

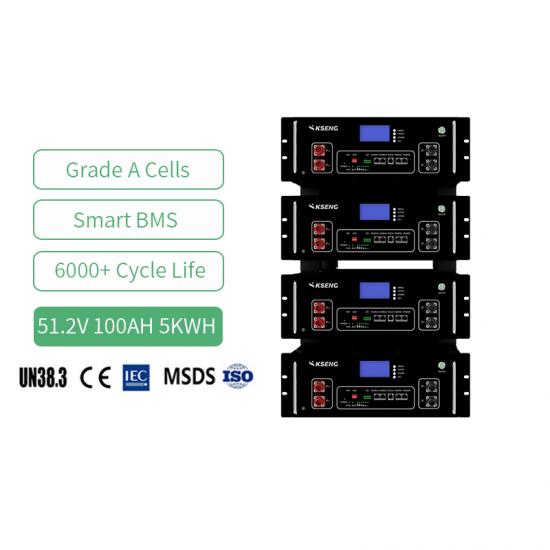

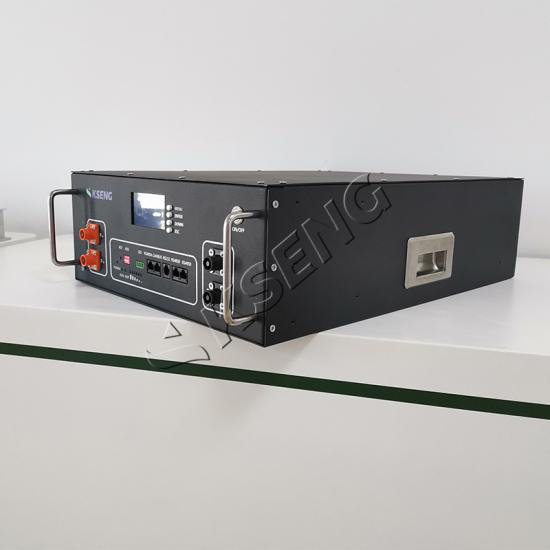

51.2V 6000 Cycle Home Energy Storage Battery 48V Lifepo4 Lithium Ion Batteries

Solar energy storage batteries capture and retain electricity from photovoltaic systems for later use, ensuring a reliable power supply even when the sun isn't available.

  • Brand:

    Kseng
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Warranty:

    5 Years
  • Service Life:

    ≥15 Years(25℃)
  • Certification:

    CE

PERFORMANCE SPECIFICATIONS

Model
KSS-05KWH512V100A-GF
Battery Type
LiFePo4
Nominal Voltage
51.2V(16series)
Capacity(Ah)
100AH
Rated Energy(KWH)
5.12KWH
Voltage Range(Vdc)
48-56.5V
Max. Charge/ Discharge Current(A)
50A /100A
Scalability
Up to 15 parallel
Certification
UN38.3,MSDS,CE,IEC62619


SECURITY AND CERTIFICATION

Safety(Pack)
UN38.3,MSDS
Safety(Cell)
UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Safety(Cel Protection)
BMS

GENERAL SPECIFICATIONS

Working Temperature(℃)
Charge:-10℃~50℃;Discharge:-20℃-50℃
Working/Storage Humidity
≤ 95%(RH) No Condensation
Max Operating Altitude (m)
≤2000m
Cycle Life
≥6000cycles @90% DOD 25℃/0.5C,60%EOL
Design Life
≥15 Years(25℃)
Warranty
5 Years

MECHANICAL SPECIFICATIONS

Weight(Approx)(KG)
Approx:47±1kg
Dimension (W/D/H)(mm)
415mm*620mm*139mm
Installation Mode
Stack

Certifications

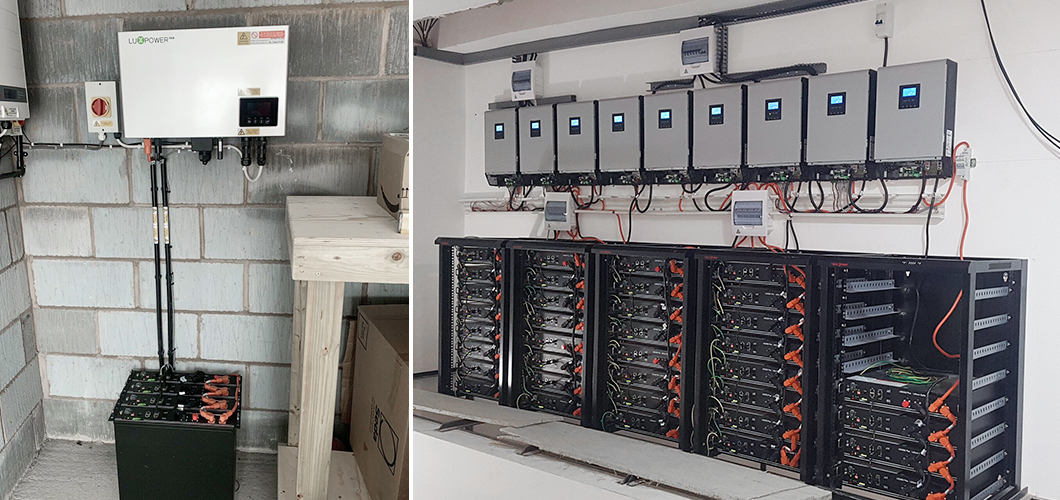

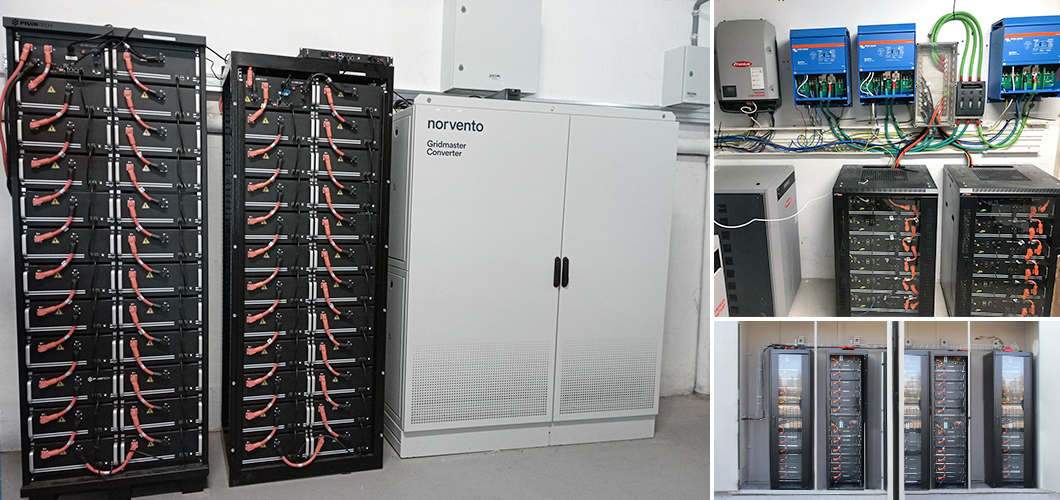

Project Gallery
