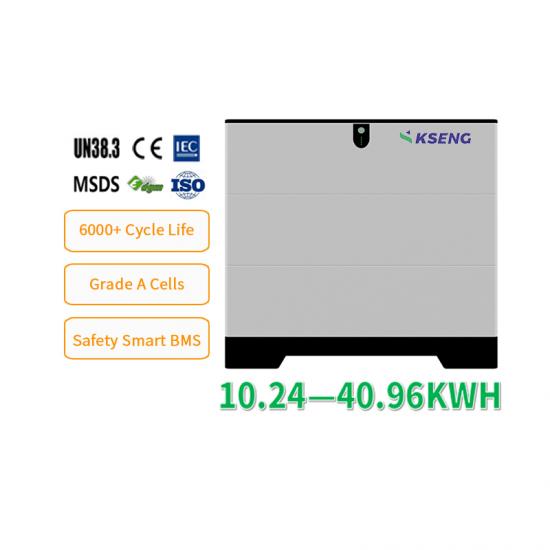

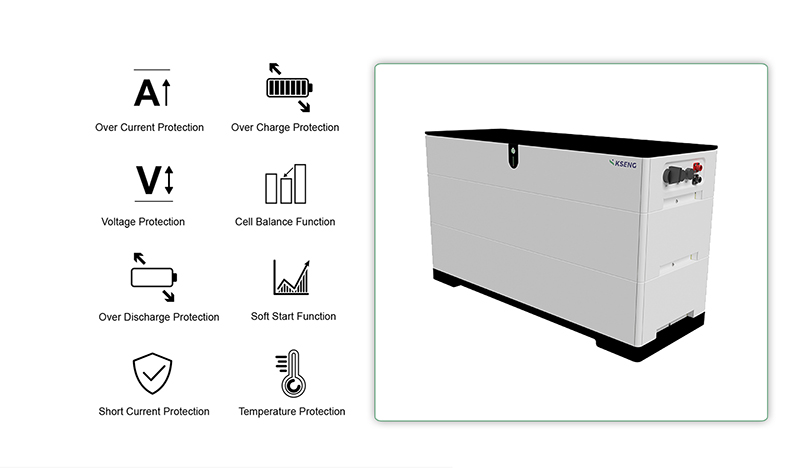

15Kwh 20Kwh 25Kwh 30Kwh High voltage lithium lifepo4 battery home energy storage systems

High voltage lithium lifepo4 battery
High voltage lithium lifepo4 battery
High voltage lithium lifepo4 battery
High voltage lithium lifepo4 battery
High voltage lithium lifepo4 battery
High voltage lithium lifepo4 battery

15Kwh 20Kwh 25Kwh 30Kwh High voltage lithium lifepo4 battery home energy storage systems

Energy Storage System Batteries are devices that store electrical energy for use when demand is high or supply is low, optimizing energy use and reducing reliance on fossil fuels

  • Brand:

    Kseng

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Warranty:

    5 Years

  • Service Life:

    ≥15 Years(25°℃)

  • Certification:

    CE
Inquiry now

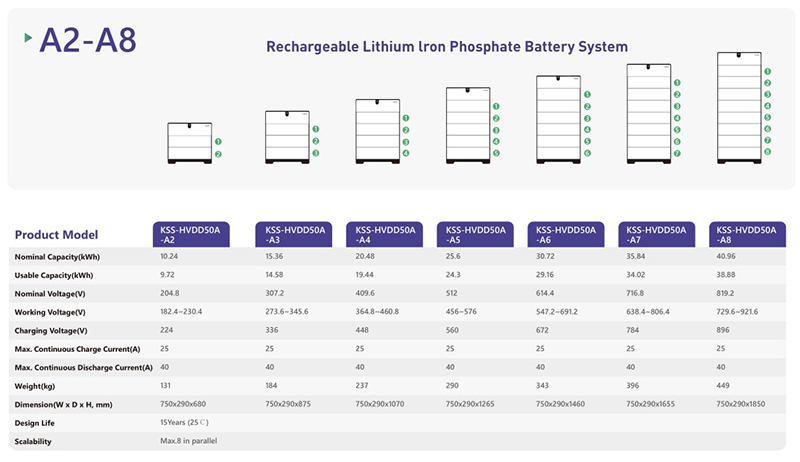

PERFORMANCE SPECIFICATIONS

A1 HVDD-A1
Model
HV Stacked LFP Battery

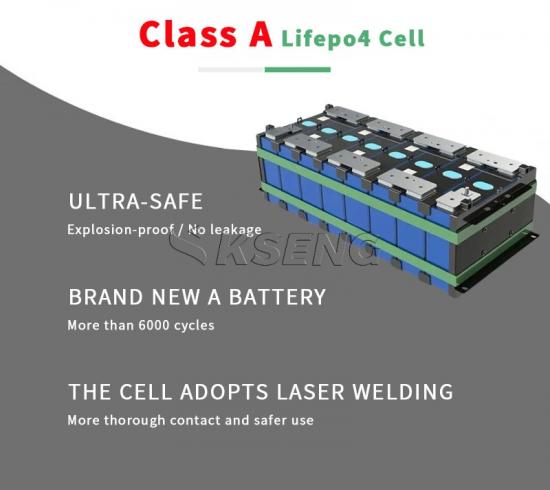

Battery Type
LFP 1P32S
Nominal Capacity
5.12kWh
Nominal Voltage
102.4V
Working Voltage
91.2~115.2V
Charging Voltage
112V
Max. Continuous Charge Current
25A
Max. Continuous Discharge Current
40A
Communication
RS485，CAN
Storage Temperature
0℃~45℃ (Recommended)
Storage Humidity
≤85%(RH)
Working Temperature
Charging:0C~50C Discharging:-20C~50C
Working Humidity
≤95% (RH) No Condensation
Working Altitude
≤2000m
Ingress Protection
 IP65
Weight
 78kg
Dimension(W x D x Hmm)
1000*365*195.5
Design Life
15 Years (25°)
Cvcle Life
>6000(25C).60% EOL
Warranty
5 Years

Certifications
