Trapezoidal Roof Mounting Mounting System May 12, 2021

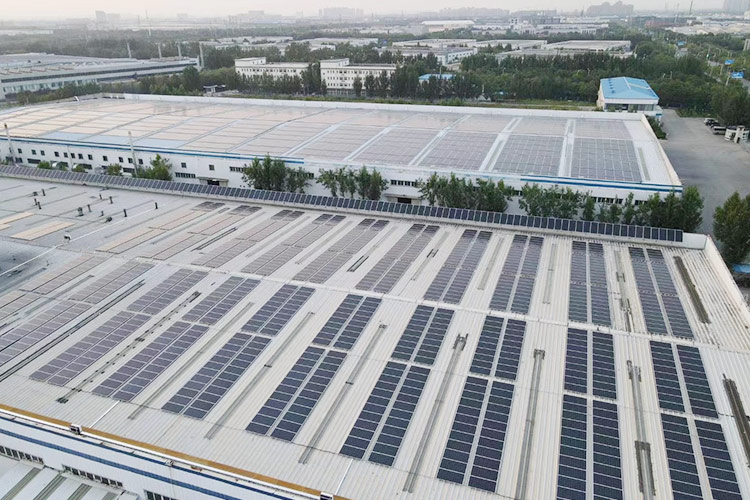

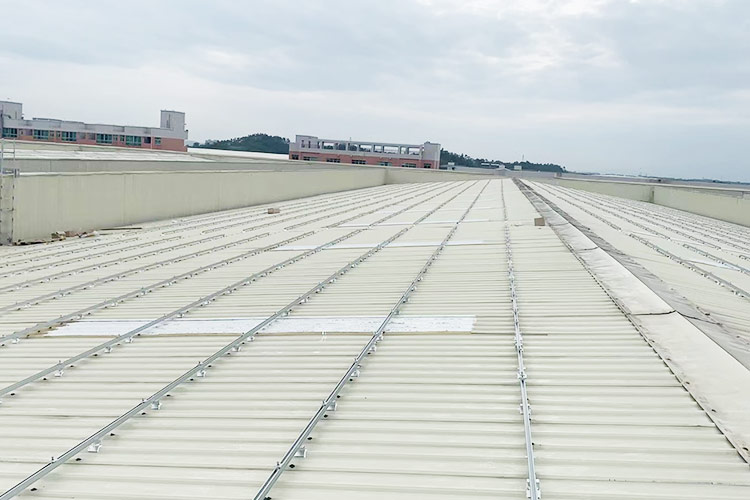

Solar metal roof pv racking with clamps are non-adjustable clamp for trapezoidal metal roofs, equipped with 2 bolts and EPDM washers, suitable for all common trapezoidal metal roof profiles. It is designed according to the width of the crown of a specific roof profile, and the height is not adjustable at the bottom to connect to the bottom mounting rail system.


Feature of solar metal roof mounting with bracket:

  1. Non-adjustable clamps can be adapted to specific trapezoidal metal roof panels;

  2. High strength aluminum alloy material with anodized surface treatment;

  3. 10 years warranty and 25 years service life;

  4. Waterproof EPDM rubber;

  5. High pre-assembly bracket, it can save labor costs at the installation site.


Considerations for PV energy system installation on trapezoidal roof:

First :Water tightness. The first and most important consideration is waterproof as any building owners want peace of mind that they won’t have a leaky roof. For this reason, it is common practice for thin sheet screws or rivets to include a neoprene or EPDM washer to create a water tight seal around the roof penetration.

Second: Metal sheet thickness. The thickness of trapezoidal sheets often sit between 0.5 and 1mm, however there are some sheets on the market now which are <0.5mm. The pull-out strength of the fixings required will change with the thickness of the sheeting; for example, as thin sheet screw will have a higher pull out force on a sheet that is 1mm thick compared to 0.5mm thick. This can impact on the number of fixations required to make a system safe against extreme wind forces so correct information is critical.

Third: Panel orientation. As with any PV project the decision to place the modules in portrait or landscape orientation can be influenced by many factors such as; system performance, roof tilt/pitch, roof orientation or roof obstructions.


Kseng Solar Systems offers a full range of pitched roof mounting systems including both insert and clamp type solar framing solutions.

Hopefully, this blog has given more clarity about the installation of PV mounting systems on trapezoidal roofs. There is much more to tell about different situations and solutions, if you would like to discuss this further with us, you are more than welcome contact us, we will let our specialists give you the best solution.

Solar metal roof system mounts with aluminum clamps are the best solution for solar metal roof installations. We design, manufacture and install solar mounting systems for the project. We are committed to providing first-class solar installation systems and project management functions. Work with customers to determine the most economical, durable and robust solar structure.
