Roof Mounting
Solar rail-based mounts Nov 04, 2021

Rail-based mounts are the more popular choice for sloped roof solar arrays. The residential solar workforce is generally trained in the system, which isn’t limited by roof type or typical weather conditions. A rail-based mount has attachment options for tile, metal and composition shingle rooftops. Panels attach directly to the rail, which is a guide for determining penetration points for system alignment.

Unlike rail-less mounts, rail-based systems allow for more options in the angle of installation, rather than just following the slope of the rooftop. Roof arrays can be adjusted between 15 and 45° on low-slope rooftops. Rail-based systems have more options for microinverter and optimizer attachments as well, because the rails provide more space between the panels and the roof.

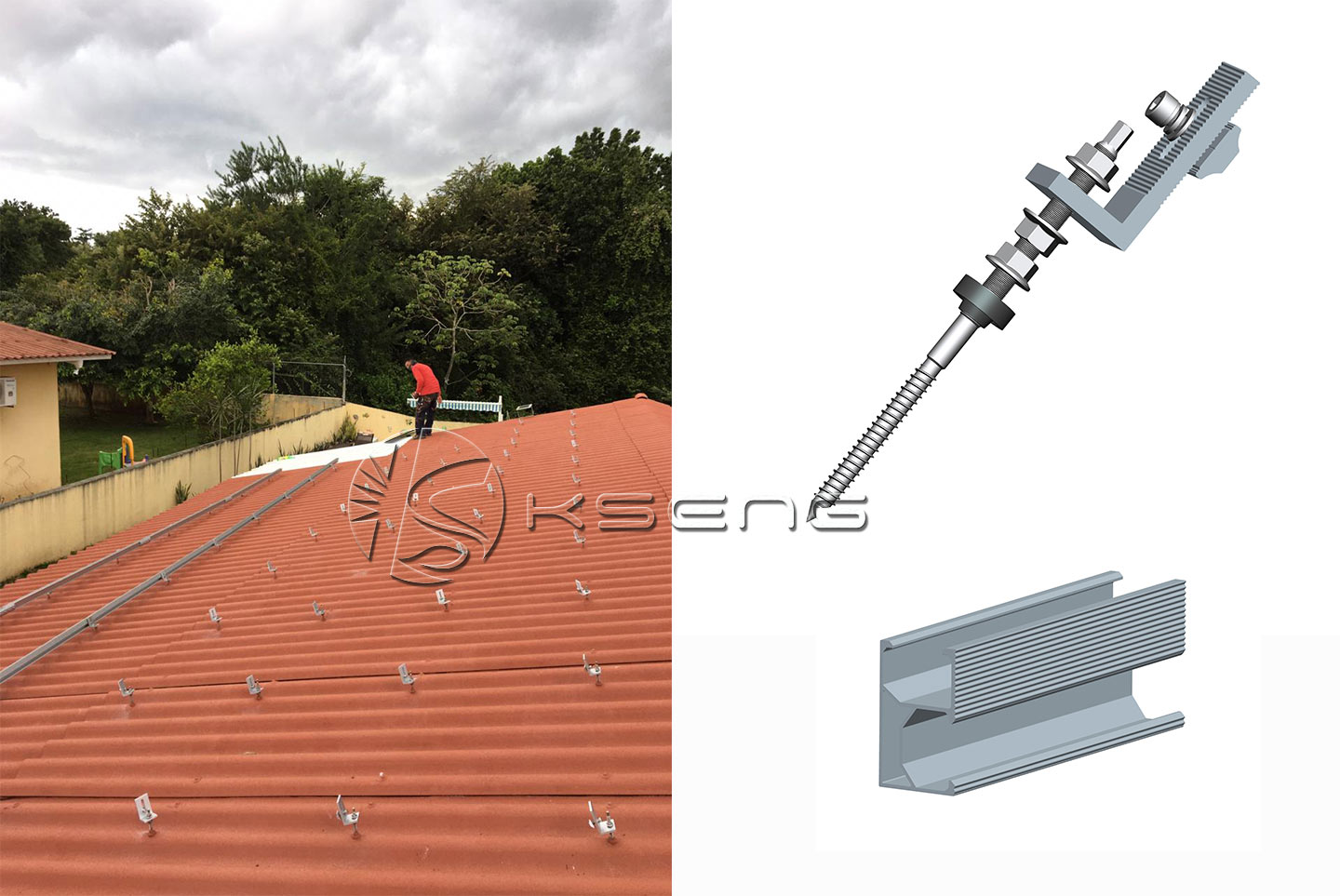

L-feet :

L feet brackets and hanger bolts are very common solar mounting components for trapezoidal / corrugated/standing seam/ R-panel …metal tin roofing PV installation.The L feet accessory can fix to the roof rafter directly. Also, it can be applied with hanger bolts and Kseng deigning roof clamps.

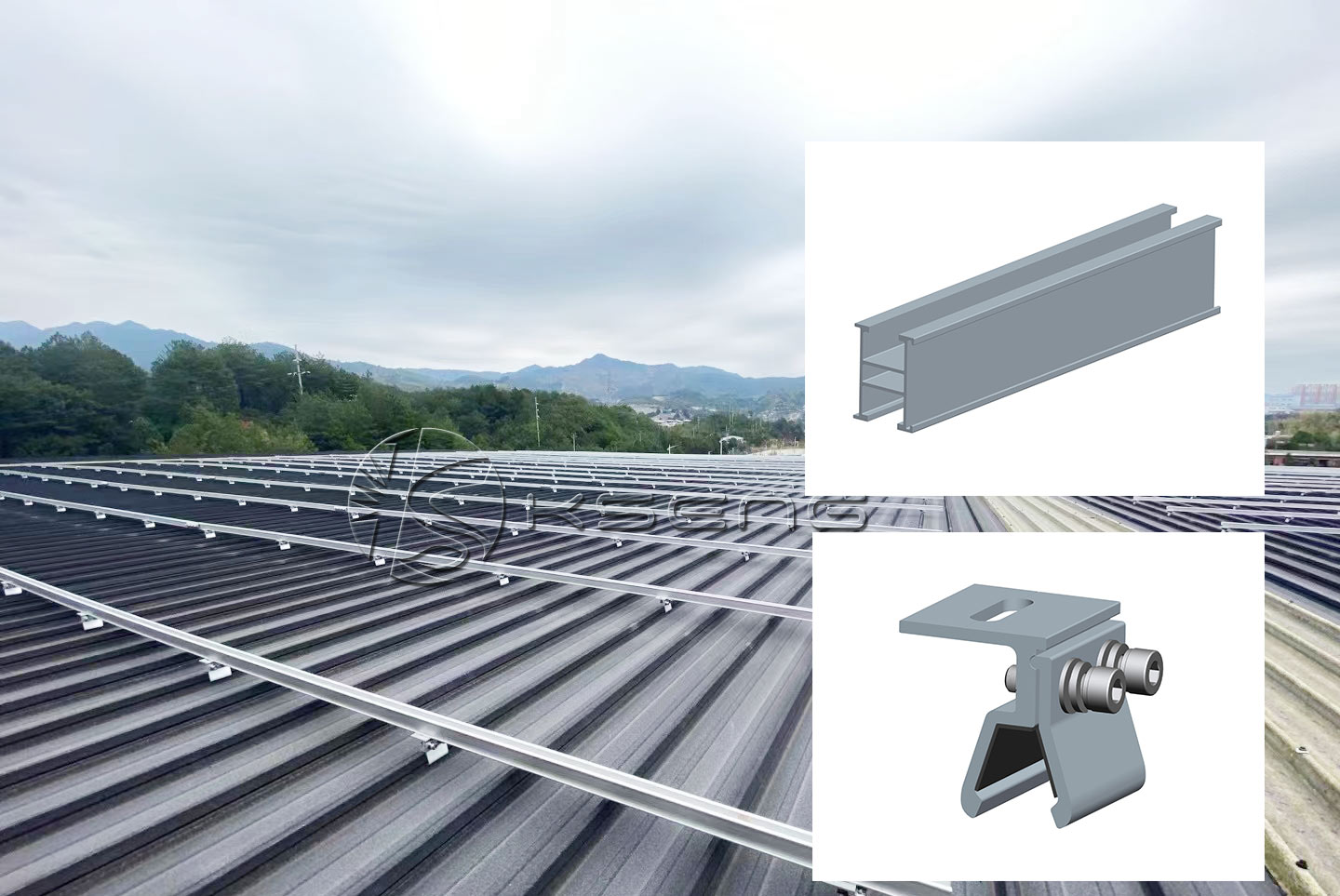

Universal adjustable clamps for trapezoidal metal roof mounting:

The solar roof clamp is specially designed for the manufacture by Trapezoidal roof mounting system and the roof type of similar profile.The universal clamp can swivel according to different trapezoidal rib profile .


Kilp Lok clamp solar mount:

The kit is designed specifically to secure framed photovoltaic modules to kilp lok Roof without penetrating the roof surface.




Whether using traditional rail-based mounts, laying panels atop rails is a quicker task than mounting panels on rail-less systems. However, rails are more cumbersome and expensive than rail-free mounts. Carrying long rails up to roofs puts more strain on installers than the fewer components of rail-free mounts, and shipping rails can be more difficult.
