Design of the solar tracking system for renewable energy Jun 10, 2021

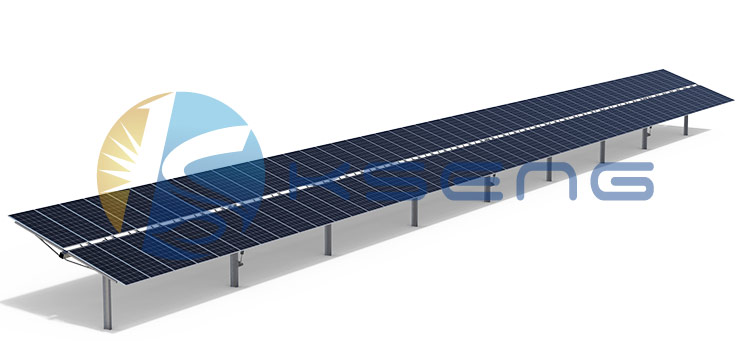

1/KST-1P One Portrait Horizontal Single-axis Tracker


                                                  Tracking Structure Parameters
Tracking Technology
One Portrait Horizontal  single-axis tracking systemMaximum capacity per row≤48kWp (Estimated with 540W PV -Modules)
PV-Modules quantity per row90 PCS (1Px90)Tracking range±45°to ±60°
Tracking accuracy±1°Terrain Adaptability10°north-south, east -west unlimited
Protection of wind speed18m/sFoundation formConcrete (customizable all steel foundation)
                                               Tracking Controller Parameters
Control systemMCUCommunication typeRS485 or wireless Zigbee
Night stow modeHaveBacktracking algorithmHave
Overload preventionHaveSelf trouble checking
Function
Have
System voltageDC24Drive MethodSlewing drive
Power Acquisition ModeExternal Supply/Self-Powered supplyControl algorithmAstronomical algorithm + closed loop(AI Control)

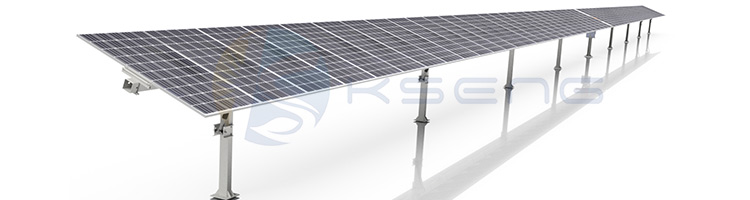

2/KST-2P Double Portrait Horizontal Single-axis Tracker


                                                  Tracking Structure Parameters
Tracking Technology
Dual solar panel  single-axis tracking systemMaximum capacity per row48kWp
PV-Modules quantity per row45 PCS (2Px45) or 30PCS(2PX30)Tracking range±45°to ±60°
Tracking accuracy±1°Terrain Adaptability10°north-south, east -west unlimited
Protection of wind speed18m/sFoundation formConcrete (customizable all steel foundation)
                                               Tracking Controller Parameters
Control systemMCUCommunication typeRS485 or wireless Zigbee
Night stow modeHaveBacktracking algorithmHave
Overload preventionHaveSelf trouble checking
Function
Have
System voltageDC24Drive MethodSlewing drive
Power Acquisition ModeExternal Supply/Self-Powered supplyControl algorithmAstronomical algorithm + closed loop(AI Control)

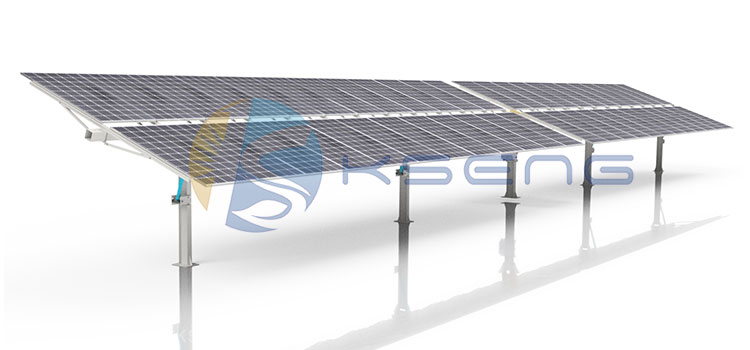

3/KST-2PM Multi-drive Double Portrait Horizontal Single-axis Solar Tracker



                                                  Tracking Structure Parameters
Tracking Technology
  Single-Axis Tracking SystemMaximum capacity per row72KWp
PV-Modules quantity per row2PX45、2PX60Tracking range±45°to ±60°
Tracking accuracy±1°Terrain Adaptability10°North-South, East -West Unlimited
Protection of wind speed18m/sFoundation formConcrete (Customizable All Steel Foundation)
                                               Tracking Controller Parameters
Control systemMCUCommunication typeRS485 or Wireless Zigbee
Night stow modeHaveBacktracking algorithmHave
Overload preventionHaveSelf trouble checking
Function
Have
System voltageDC24Drive MethodLinear
Power Acquisition ModeExternal Supply/Self-Powered SupplyControl algorithmAstronomical Algorithm + Closed Loop(AI Control)

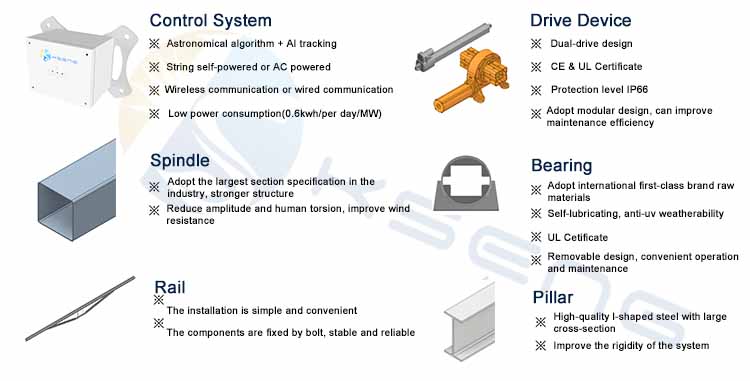

Main Structural Parts:

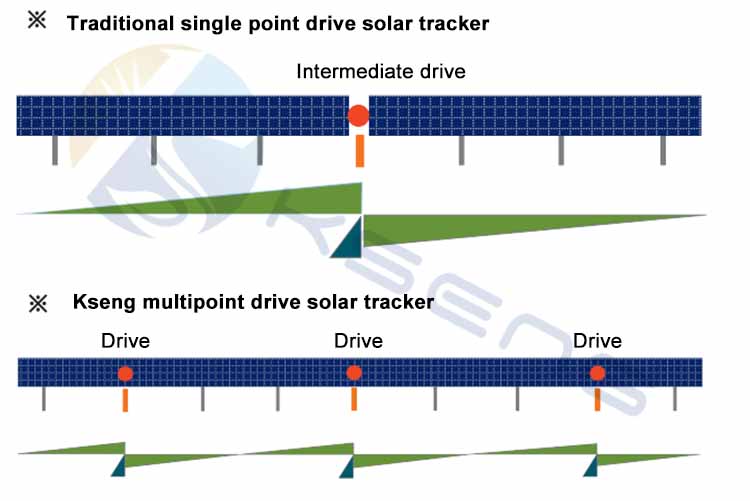

Stability Comparison: Multi-drive VS Single-drive


Terrain adaptability:

1. Flexible arrangement, make full use of irregular land and can improve land utilization.

2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.

n-s_01 (2).jpg

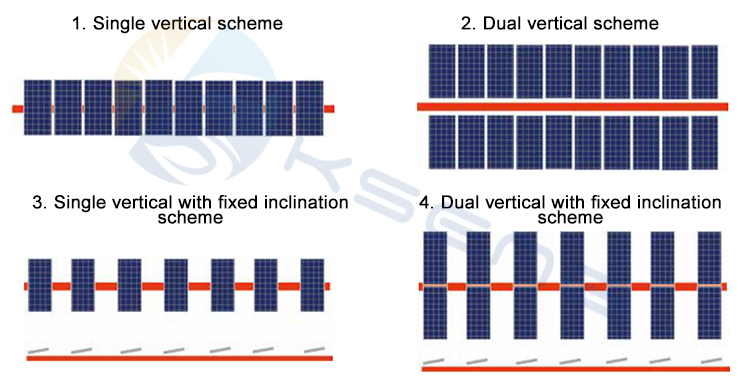

Modules Array Proposals:




Convenient Maintenance:

1、Warranty: Structure 10 Years, Electric Components 5 Years.

2、Slew Drive:

(1) Modular Design for Motor & Connector

(2) Reduce Maintenance Cost, Increase Maintenance Efficiency

3、Multi Linear Drive:

(1) Multi Electrical Interlocking with Closed Loop Protection, Improve Fault Detection

(2) No Special Tools, Replace the Drive Mechanism by One Person

(3) Motor Components Replaceable, Reduce Maintenance Cost, Increase Maintenance Efficiency.
