Solar Ground Mounting System with Double Flanged Tube

Ground-mount solar panels can be placed anywhere in a yard or field that sees the sun for the majority of the day. Solar solutions harness the sun's energy, convert it and store it. Companies use solar energy and sometimes return it to the main power grid for resale so they can generate renewable energy tax credits.

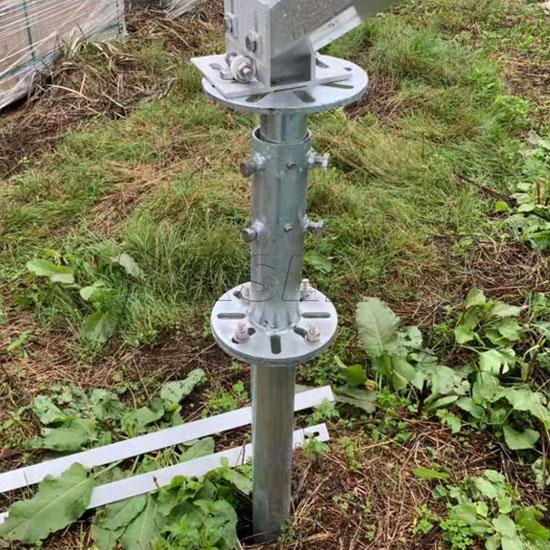

The ground mounting system use the double flanged tube to enable a certain distance between solar panel and ground.

Benefits of ground-mounted solar systems:

1.Material features with high strength superior corrosion resistance, self-repair, long lasting and easy processing.

2.No need for post-coated or smeared, reduce the cost of rust-proof or  paint repair on site.

3.Conventional specification can be mass-produced to maximum control of production cycle.

4.Use our ground screw, the installation time is significantly shorter, and the installation can be done quickly and effectively without any major preparations being needed.

Solar ground mounting system installation:

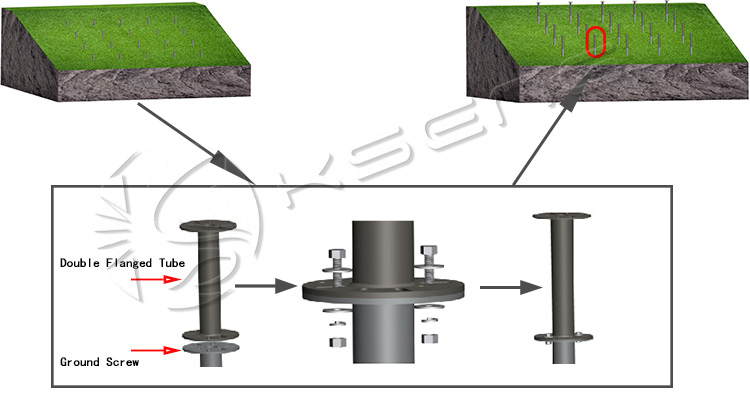

Step1: According to the drawing,Establish pile foundation and install doubel flanged tube!

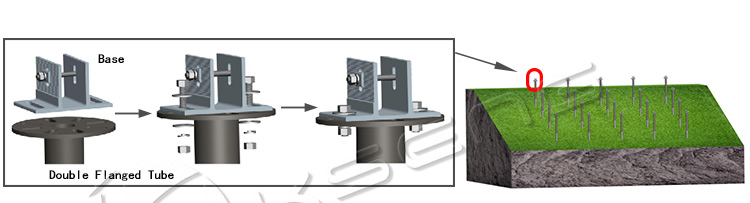

Step2:Install the solar base( M12*40 bolt and nut).

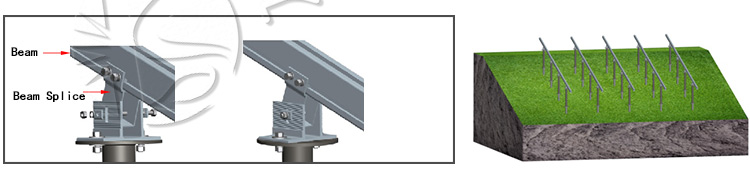

Step3: Install the solar beam.

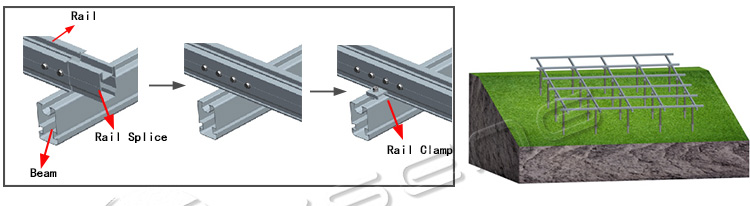

Step4:Install the solar rails on the solar bracket beams.

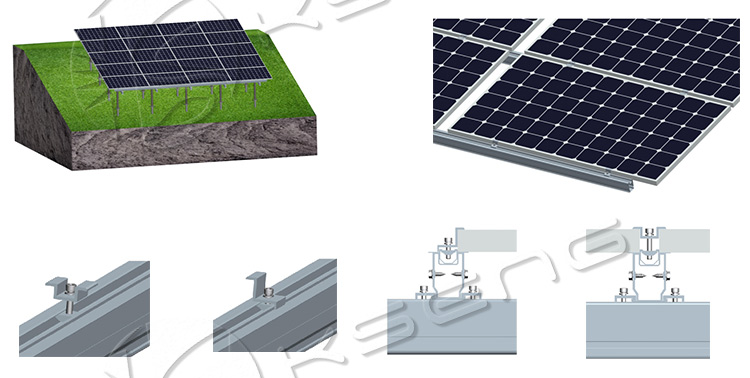

Step5:Install the solar panles on the solar bracket rails.

Introduction of Solar Aluminum Ground Racking System:

Solar Ground Mounting System Introduction:
Material Characteristics: Aluminum alloy has light weight, high strength, good corrosion resistance and aesthetics.

Stability: The bracket design takes into account the wind, snow load and other environmental factors to ensure long-term stability.

Easy Installation: Aluminum alloy bracket usually adopts modular design, which is easy to be transported and quickly installed.

Adjustability: Some systems allow the angle of the panels to be adjusted to suit the sunlight conditions in different regions.

Low maintenance cost: Aluminum alloy is easy to clean and has a long maintenance cycle, resulting in low maintenance costs.

FAQ

1. Who is Kseng Solar?

Kseng Solar is a professional solar mounting system manufacturer specializing in reliable PV racking and tracking solutions for residential, commercial, and utility-scale solar projects. With dual manufacturing bases capabilities, advanced R&D expertise, and internationally recognized certifications, Kseng Solar delivers safe and efficient solar solutions worldwide.

2. How does Kseng Solar ensure product quality?

Quality is integrated into every stage of Kseng Solar's production process. From raw material selection and manufacturing to inspection and final delivery, Kseng Solar follows strict quality management procedures to ensure every product meets high-performance standards.

3. Can Kseng Solar products withstand harsh environments?

Yes. Kseng Solar mounting systems are engineered for different environments, including high-wind areas, heavy-snow regions, coastal locations, and large-scale utility projects. Durable materials and certified testing ensure long-term system reliability.

4. Does Kseng Solar cooperate with distributors and EPC companies?

Yes. Kseng Solar partners with distributors, installers, EPC contractors, and renewable energy developers worldwide by providing certified products, technical support, marketing assistance, and long-term cooperation opportunities.

5. Does Kseng Solar support global EPC project requirements?

Yes. Kseng Solar provides engineering documents, technical support, certification documents, installation guidance, and customized solutions to support EPC companies and developers worldwide.
