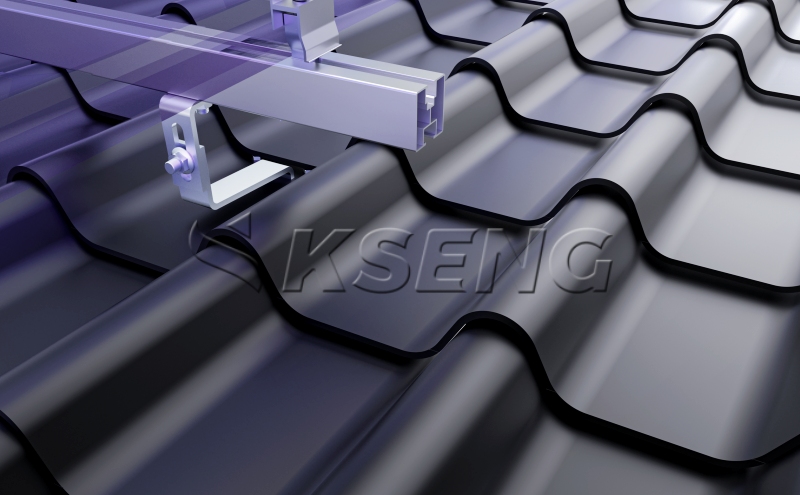

Glazed tile sloping roof photovoltaic support system has great flexibility for the design and planning of commercial or residential roof solar systems, mainly used for glazed tile roofs. This system is made of unique aluminum alloy extruded brackets, various blocks and various roof hooks. It is mainly composed of guide rails, guide rail connecting blocks, medium pressure, side pressure, and roof hooks. The angle is designed and processed according to the requirements of customers to meet the installation requirements of solar modules at different latitudes and longitudes in different countries or regions, so as to ensure the best lighting angle.

01 Scope of application

The glazed tile roof photovoltaic support system is mainly suitable for residential roofs and has great flexibility. It is suitable for all kinds of solar panel tiled sloping roofs, and common tile types of civil buildings can be used, including asphalt tiles, glazed tiles, cement flat tiles, Roman tiles, Spanish tiles and slate tiles.

02 Solution

This photovoltaic support solution uses specific aluminum extrusion guide rails, various pressing blocks and various roof hooks. Choose the corresponding hook according to the type of tile, fix the hook on the roof beam, choose the appropriate aluminum alloy guide rail according to the load requirements of the roof, and fix the guide rail on the hook. Insert the pre-installed pressure block into the guide rail, place the components and tighten the bolts to fix the components.

03 Advantages

①.The bracket system adopts the buckle installation form, which minimizes the types of parts in the whole system, and the installation is convenient and quick;

②.Applicable to the installation and application of solar cell modules of different specifications;

③.High-quality light-duty aluminum alloy profiles are selected, with a neat and beautiful appearance, light weight, and easy transportation.
