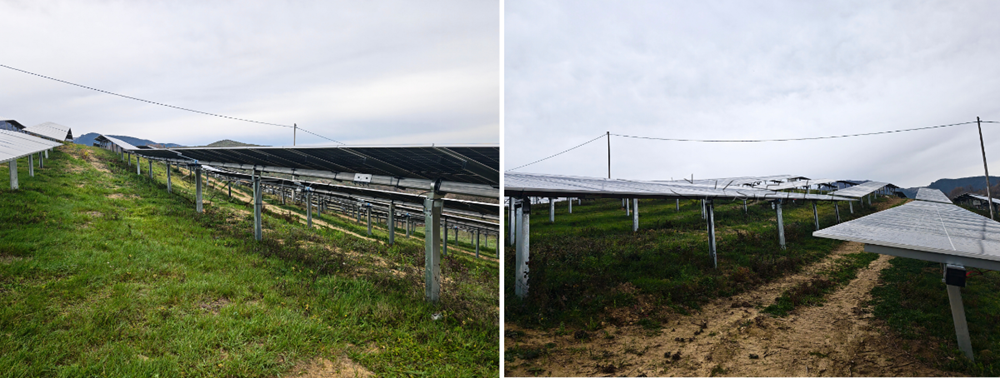

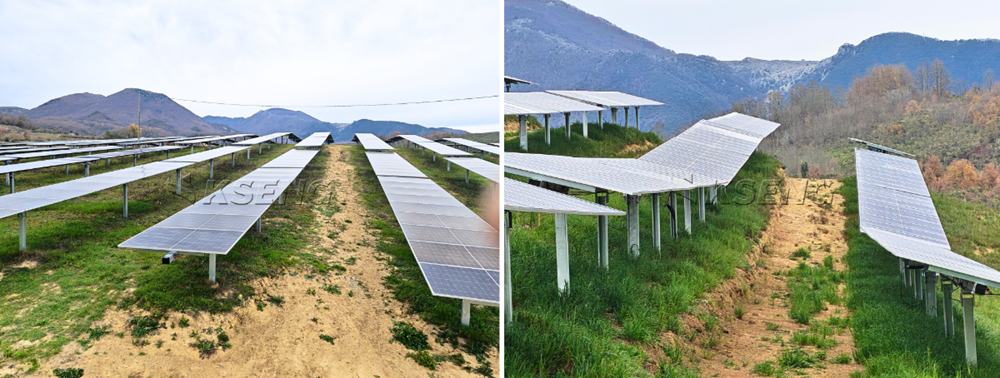

A 1.4MW solar tracker project in Italy, powered by Kseng Solar’s KST-1P Solar Tracker, is now running smoothly.
Notably, the project site features extremely challenging terrain, with a 10° slope in both the north-south and east-west directions. Faced with this difficult topography, Kseng Solar’s experienced engineer team designed a custom short-row layout, which not only simplified installation but also maximized energy yield, earning high praise from the client.
**Project information**
- Location: Italy
- Size of system: 1.2MW
- Design wind speed: 28 m/s
- Design snow: 1.2kN/m²
- Design standard: Eurocode 1991-4
- Field temperature: -15℃-40℃
- Foundation: Ramming Pile
- Material: Zn-Al-Mg Coated Steel & Hot-Dip Galvanizing Carbon Steel
- Minimum ground clearance: 1300mm
- Module orientation: 1P Portrait
- PV-Modules quantity per rows: 18PCS
- Control unit power supply: Self-powered
- Adapt to various terrains allowing a north-south slope up to 20%
- AI algorithm to maximize power generation
- Fully fit for 210mm modules
- Easy installation & maintenance
Find more about the product: https://www.xmkseng.com/kst-1p_c17
