KSM-MA Fixed Adjustable Ground Mounted Solar Panels Mounting System

The fixed adjustable solar mounting system makes solar power muchmore cost-effective as it increases overall power collection efficiency. The angle will be adjusted according to the season or the project maintenance circle.

  • Brand:

    Kseng
  • Goods Stock:

    1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Material:

    HDG Steel, Al-Mg-Zn Coating Steel
  • Application:

    Ground

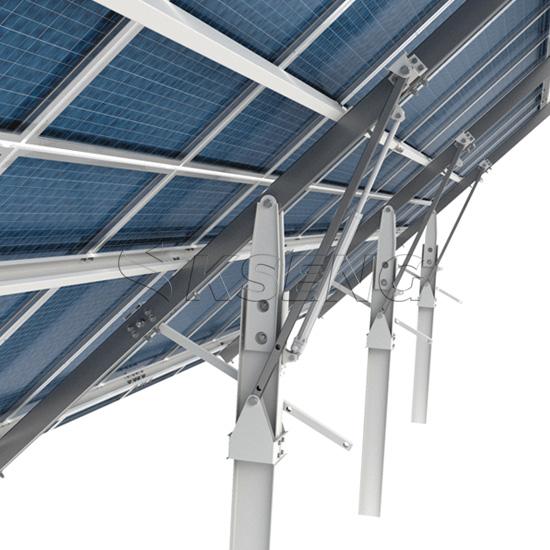

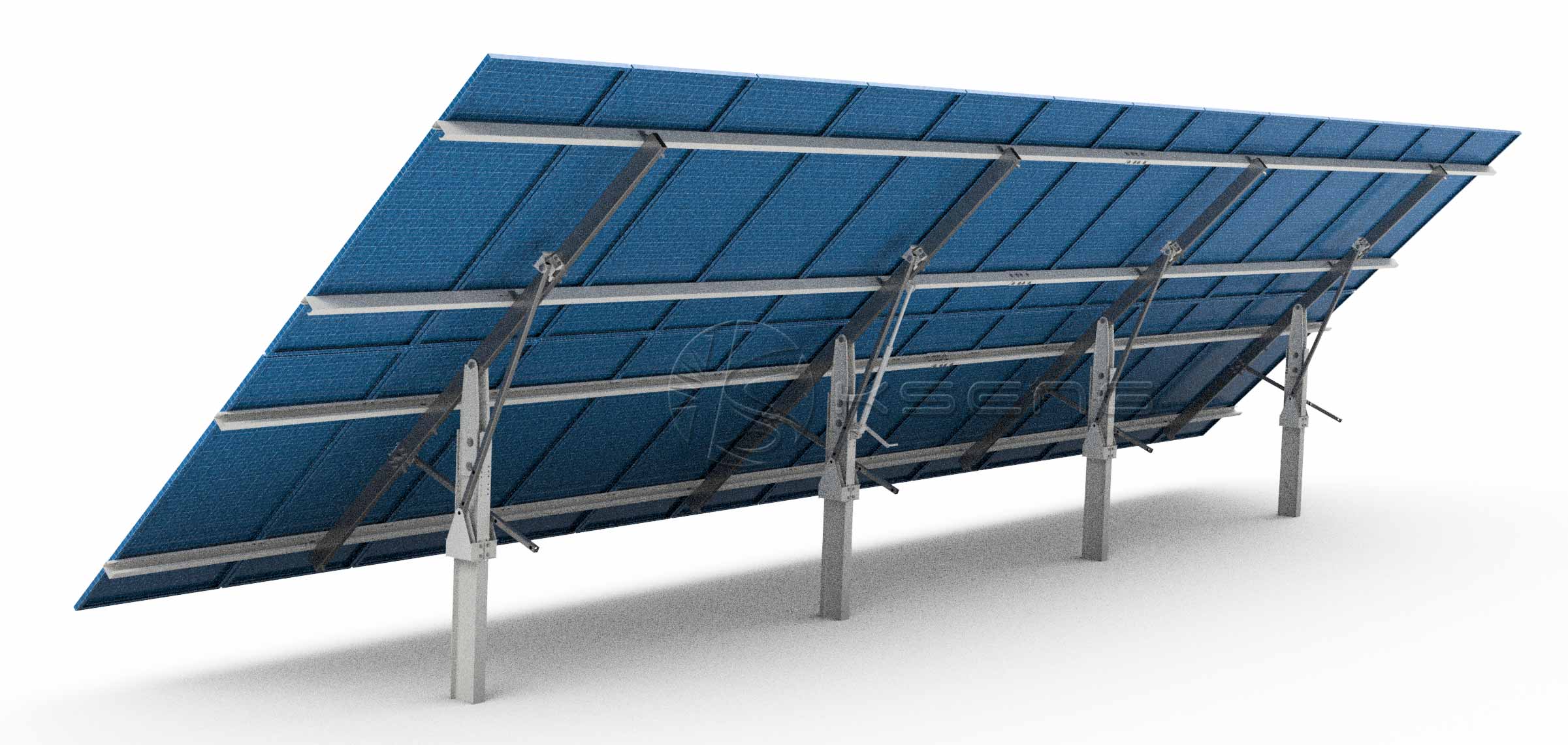

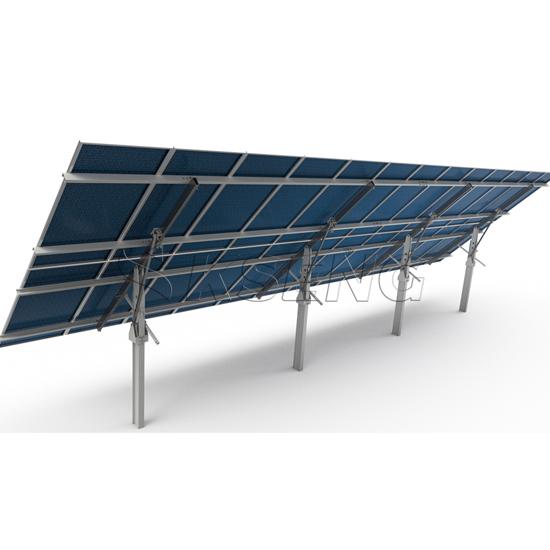

KSM-MA Fixed Adjustable Solar Mounting System

The solar fixed adjustable solar mounting system is used to fix the solar pv panels and gives a support and inclination to the system. They are made by HDG steel and Al-Mg-Zn coating steel  which featured with high strength. They can be mounted on a concrete foundation, PHC pile and ground screw pile. Customized tilt angles meet the complex requirements of the construction site and use effectively energy of the sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.

fixed adjustable mounting bracket


                                           Fixed Adjustable System Structure Parameters
Product Name
Fixed Adjutable Mounting System Maximum capacity per row 36kWp (Estimated with 600W PV -Modules)

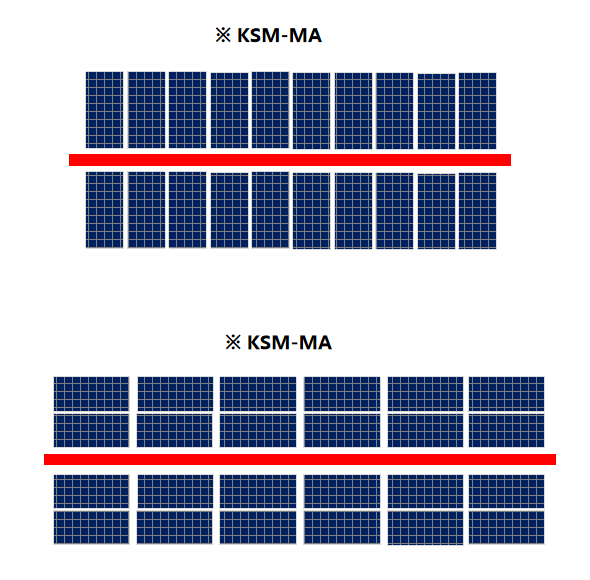

PV-Modules quantity per row 2Px30、2Px15、4Hx7、4Hx14 Adjustment range 5°to 60°
Adjustment accuracy ±1° Structural Materials HDG steel, Al-Mg-Zn, Coating steel
Quantity of Foundation/MW 226 PCS/MW (Estimated with 600W PV-Modules) Foundation  Concrete Foundation, Steel Pile,PHC Pile
                                                        Adjustment Parameters
Adjustment Method Stepless or Step Adjustment Mechanism Linear Drive
Mechanism Quantity 1 pcs/post or 1 pcs/row Adjustment tool Electric tool or manual tool
                                                                   Efficiency
Stepless adjustment One Person Efficiency
7MW/Day
Step Adjustment One Person Efficiency 1.5MW/Day
                                                                Environment
Wind Load Customized According to Local Condition Operating Temperature -40℃ to +60℃
Enviromental Pollution Level C5 Slope Tolerance East-west 10%~20%, North-southno Limits
                                                                    Other
Special Tools Not Required Load Design Standard GB, ASCE, BS EN,AS(According to Project)





Fixed Adjustable Mounting System Characteristic:

  1. Stepless adjusting

  2. One-person adjusting

  3. Electric tool adjusting

  4. Adaption to various terrains allowing a slope up to 10%-20%

  5. Eay installation and easy maintenance

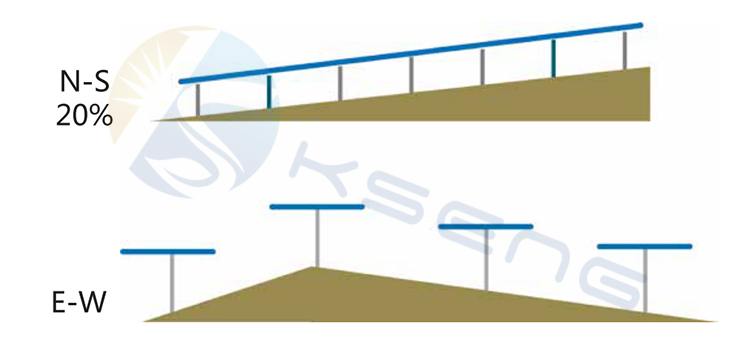

Terrain adaptability:

1. Flexible arrangement, make full use of irregular land and can improve land utilization.

2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.

solar fixed adjustable mounting system.jpg

solar fixed adjustable mounting system.png
